Barometric Pressure Sensor (BPS): Specifications: Specification

Pressure [kPa (kgf/cm2 , psi)]	Output Voltage (V)
10.0 (0.01, 0.15)	0.50
55.0 (0.56, 7.98)	2.21
100.0 (1.01, 14.5)	3.93
115.0 (1.17, 16.9)	4.50

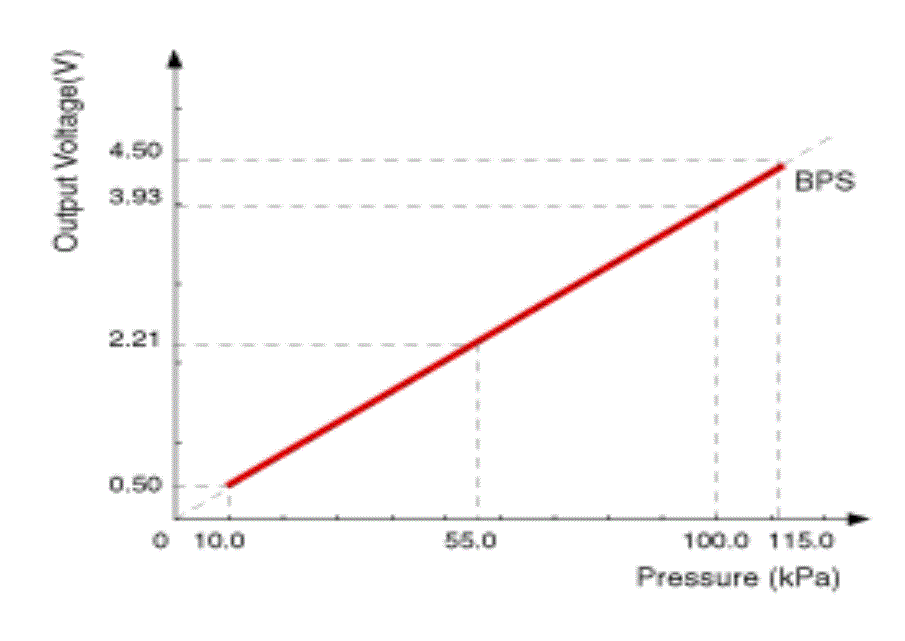

Fig 1: Barometric Pressure Sensor Output Voltage Graph

Courtesy of HYUNDAI MOTOR AMERICA
