[CVVT Oil Control Valve (Intake)]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intake manifold.

    (Refer to "INTAKE MANIFOLD ")

  3. Disconnect the CVVT oil control valve connector (A).
  4. Remove the installation bolt (B), and then remove the valve from the engine.

    [Bank 1]

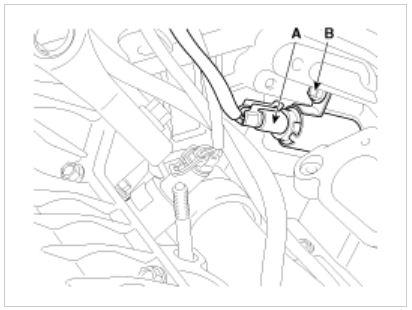

    Fig 1: Identifying CVVT Oil Control Valve Connector And Installation Bolt
    G08809736Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 2]

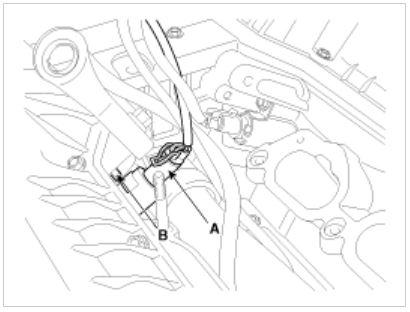

    Fig 2: Identifying CVVT Oil Control Valve Connector And Installation Bolt
    G08809737Courtesy of HYUNDAI MOTOR AMERICA
