Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")

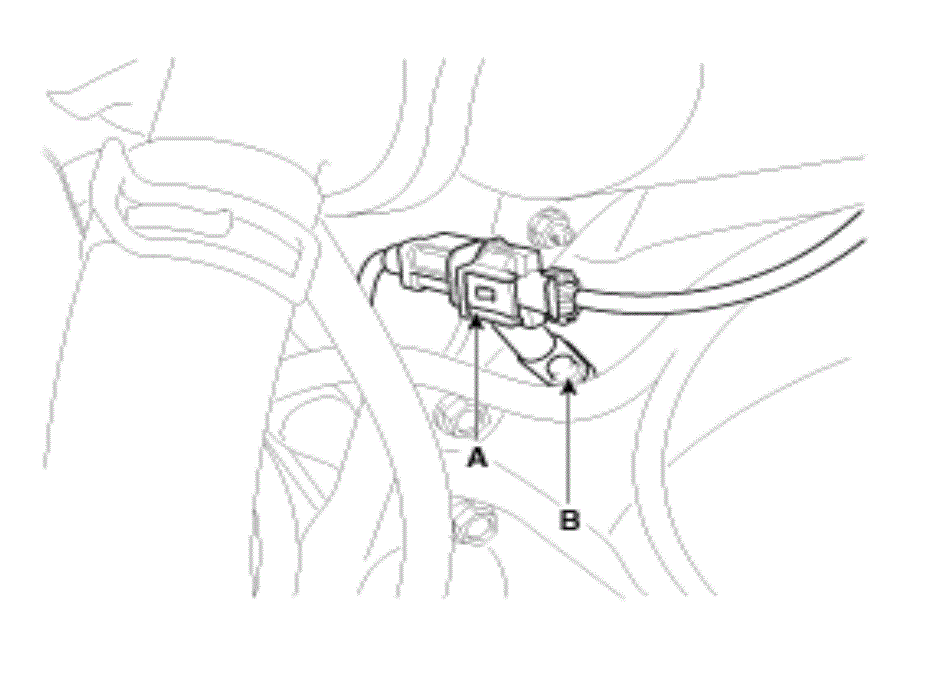

- Disconnect the crankshaft position sensor connector (A).
- Remove the installation bolt (B), and then vertically remove the sensor from the transaxle housing.
