Fuel Tank Pressure Sensor (FTPS): Specifications: Specification

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V)
-6.67 (-0.06, -0.97) 0.5
0 2.5
+6.67 (0.068, 0.97) 4.5

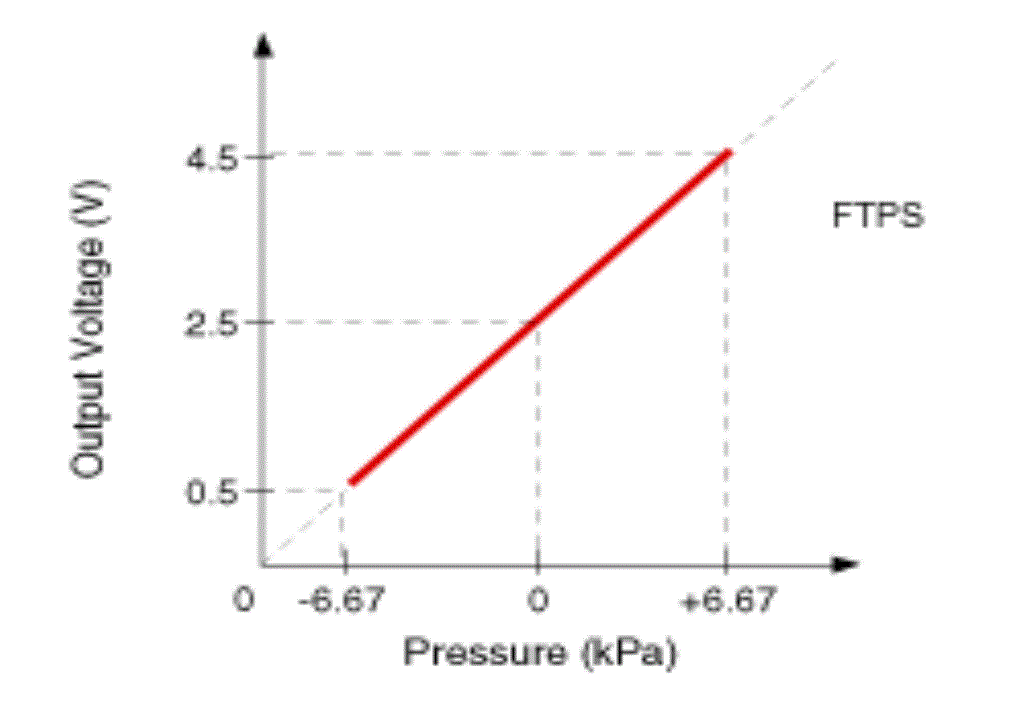

Fig 1: Fuel Tank Pressure Sensor Output Voltage Graph
G08809715Courtesy of HYUNDAI MOTOR AMERICA
