Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Disconnect the connector (A), and then remove the sensor (B).
NOTE: Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

[Bank 1/Sensor 1]

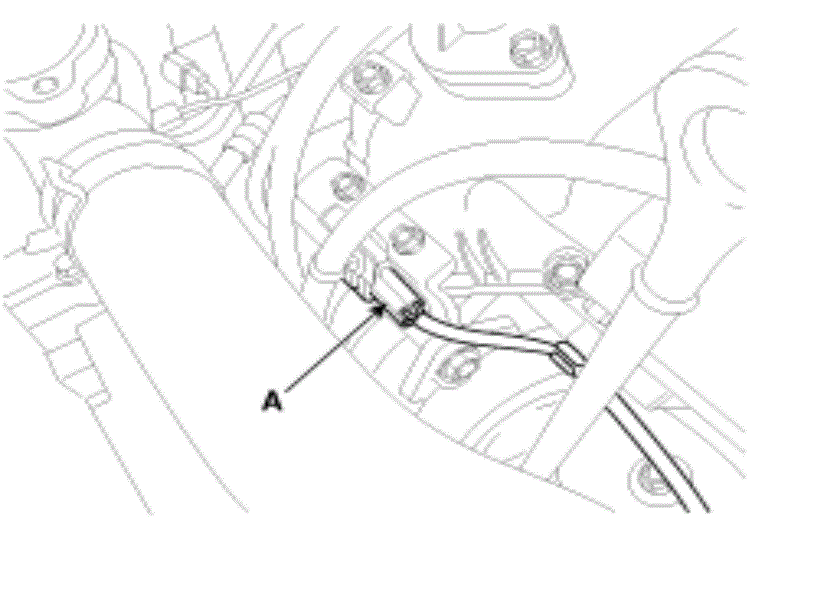

Fig 1: Identifying Heated Oxygen Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

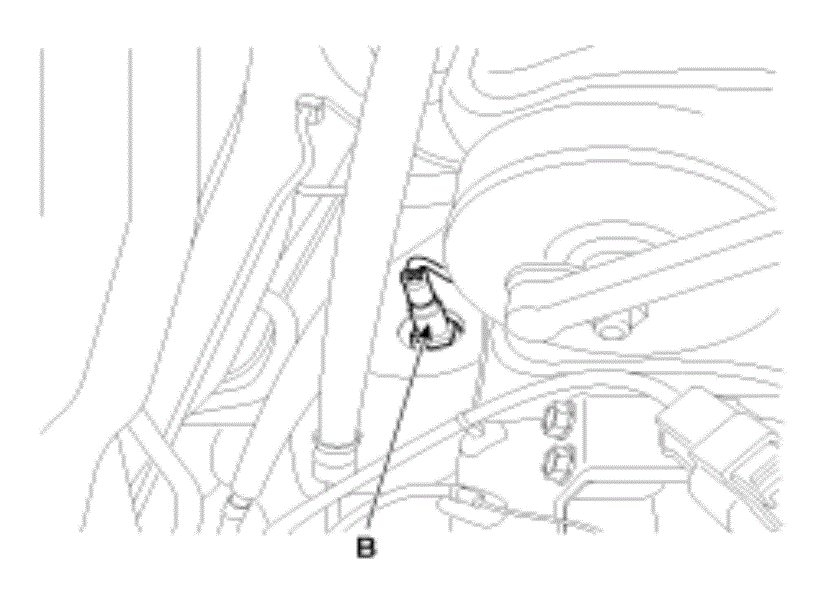

Fig 2: Identifying Heated Oxygen Sensor
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Sensor 2]

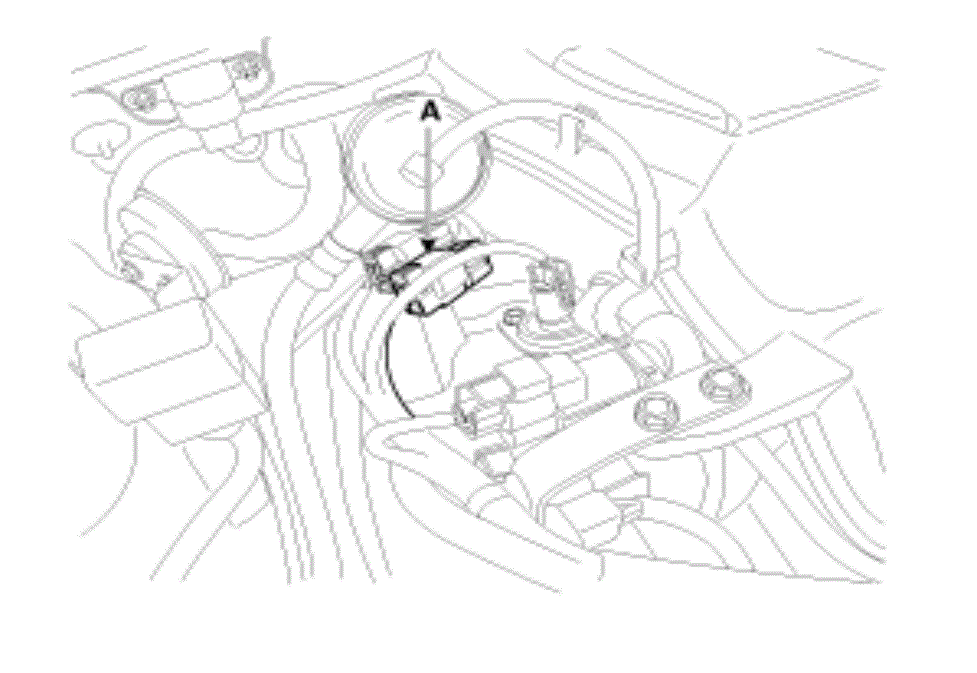

Fig 3: Identifying Heated Oxygen Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

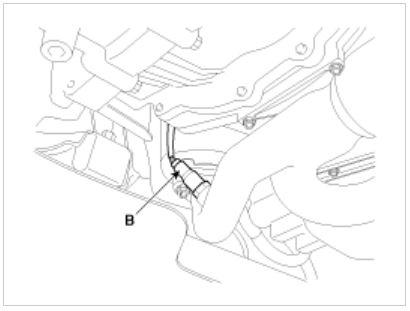

Fig 4: Identifying Heated Oxygen Sensor
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2/Sensor 1]

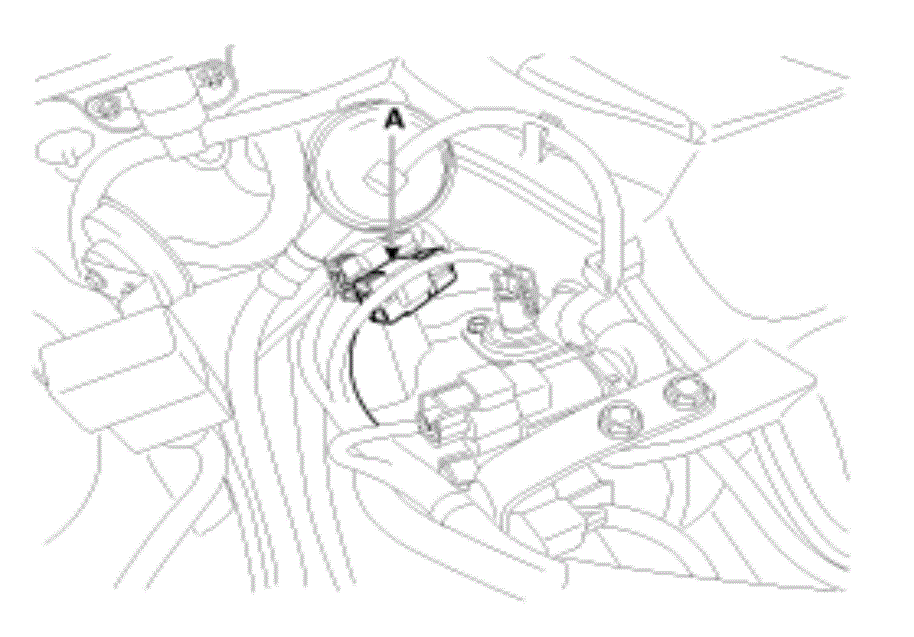

Fig 5: Identifying Heated Oxygen Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

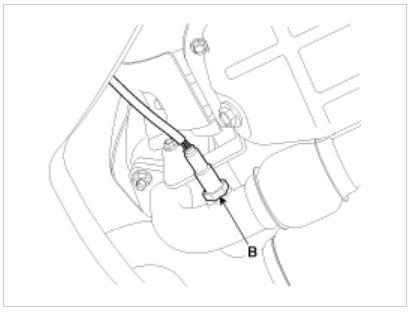

Fig 6: Identifying Heated Oxygen Sensor
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2/Sensor 2]

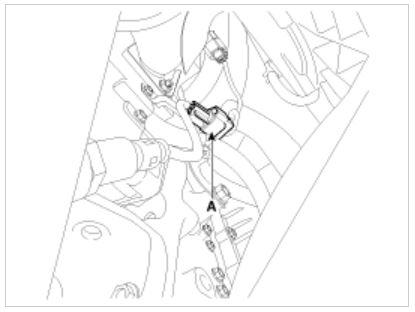

Fig 7: Identifying Heated Oxygen Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

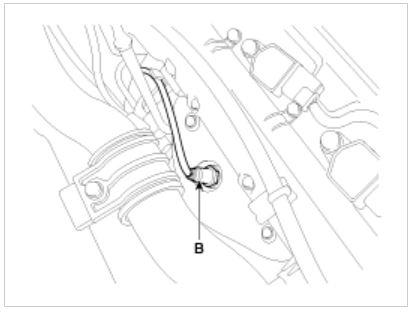

Fig 8: Identifying Heated Oxygen Sensor
Courtesy of HYUNDAI MOTOR AMERICA
