Repair Procedures: Removal

  1. Turn the ignition switch off and disconnect the battery negative (-) cable.
  2. Disconnect the injector drive box (IDB) connector (A).

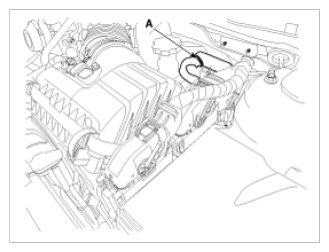

    Fig 1: Identifying Injector Drive Box Connector
    G08809646Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the air cleaner assembly.

    (Refer to "AIR CLEANER ")

  4. Remove the main wiring harness (B) after removing the nut (A).

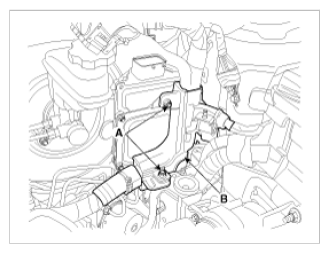

    Fig 2: Identifying Main Wiring Harness And Nuts
    G08809648Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the IDB bracket assembly (B) after removing the bolts (A).

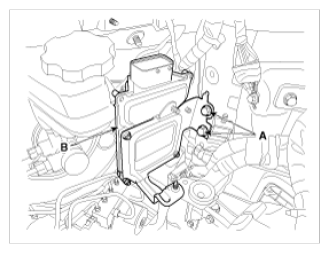

    Fig 3: Identifying IDB Bracket Assembly And Mounting Bolts
    G08809649Courtesy of HYUNDAI MOTOR AMERICA
  6. After removing the installation bolts (A), remove the IDB from the bracket.

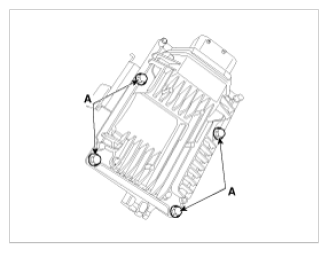

Fig 4: Identifying IDB Bracket And Installation Bolts
G08809650Courtesy of HYUNDAI MOTOR AMERICA
