Circuit Diagram

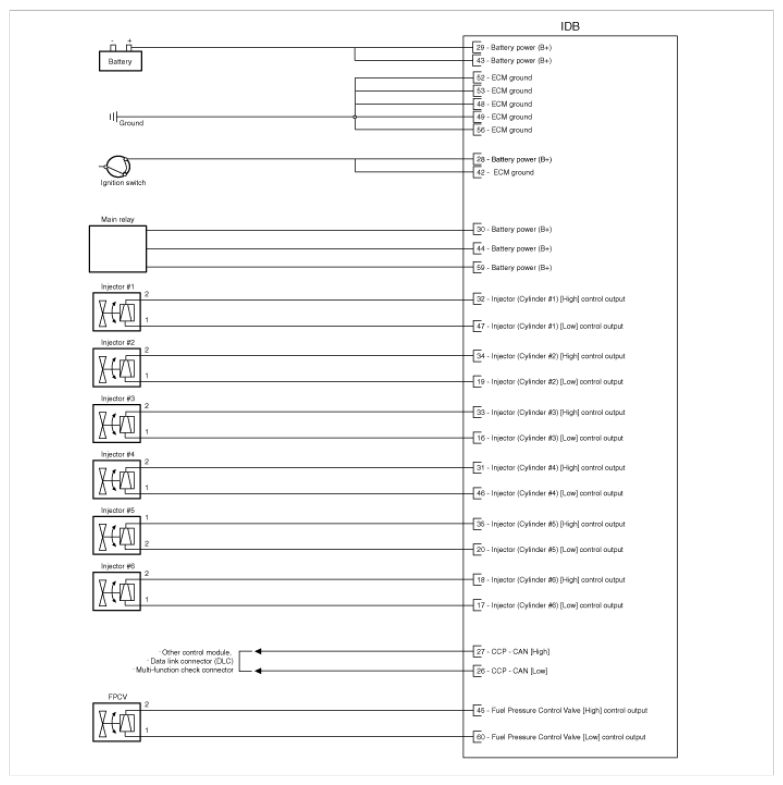

Fig 1: Injector Drive Box Circuit Diagram (1 Of 2)
G08809644Courtesy of HYUNDAI MOTOR AMERICA

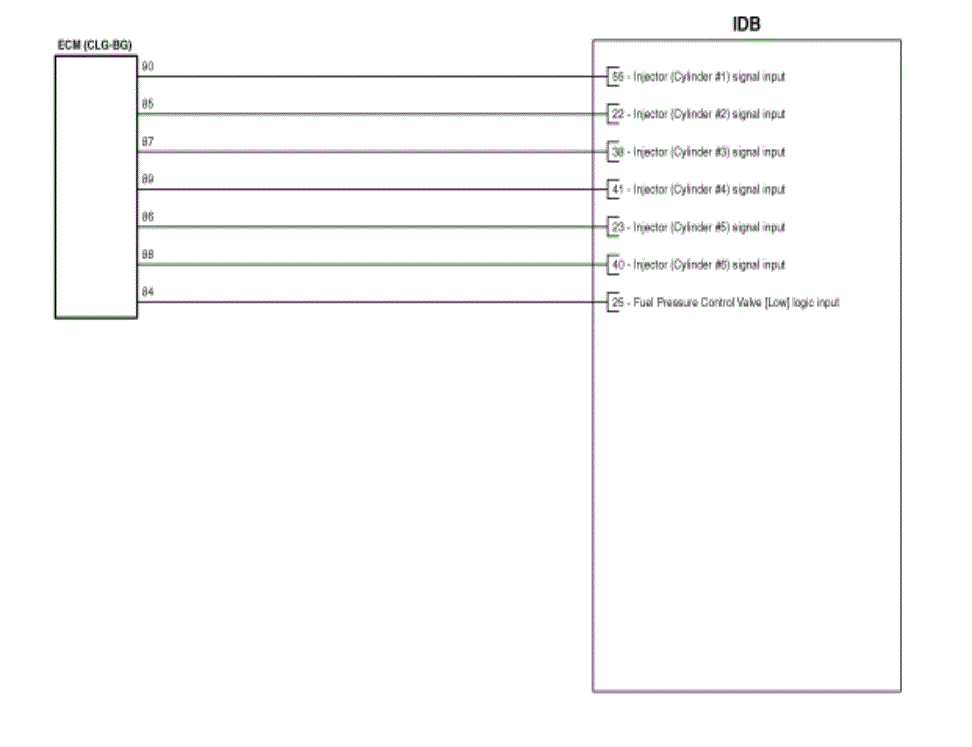

Fig 2: Injector Drive Box Circuit Diagram (2 Of 2)
G08809645Courtesy of HYUNDAI MOTOR AMERICA
