Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the intake air temperature sensor connector (A).
  3. Remove the installation bolts (B), and then vertically remove the sensor from the air cleaner assembly.

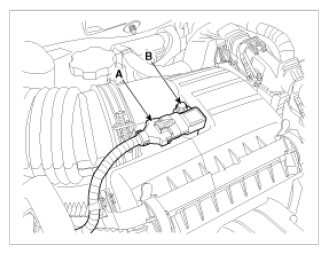

    Fig 1: Identifying Intake Air Temperature Sensor Connector And Installation Bolts
    G08809663Courtesy of HYUNDAI MOTOR AMERICA
