Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve from the bracket.

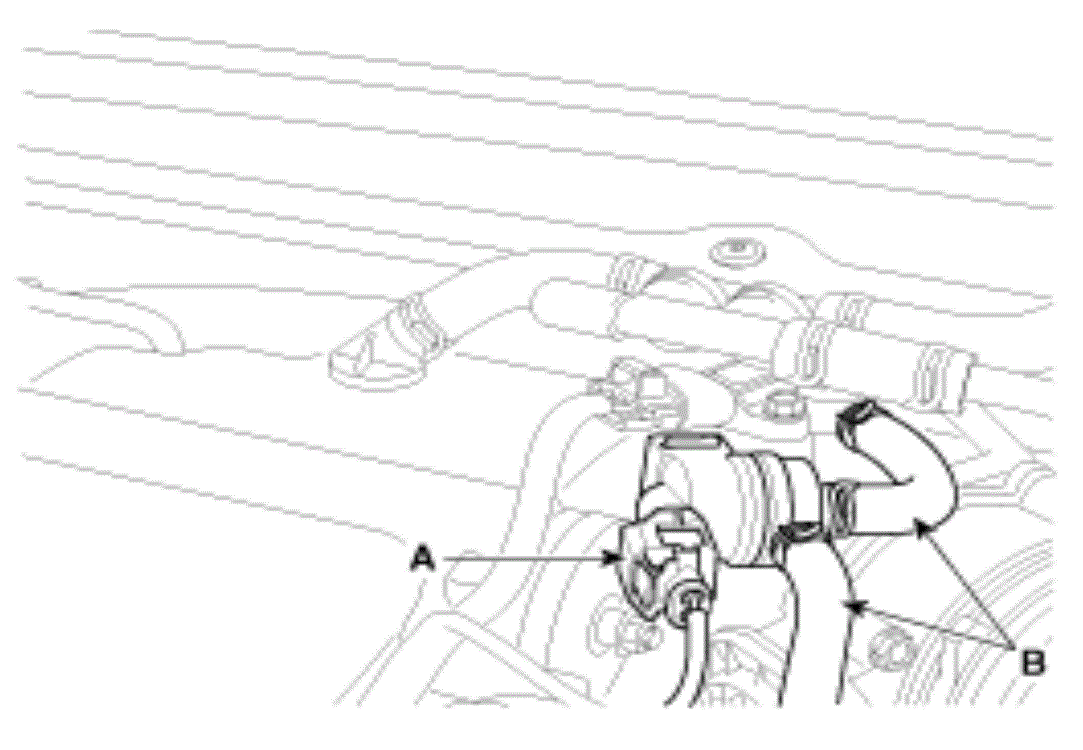

    Fig 1: Identifying Purge Control Solenoid Valve Connector And Vapor Hoses
    G08809733Courtesy of HYUNDAI MOTOR AMERICA
