Rail Pressure Sensor (RPS): Specifications: Specification

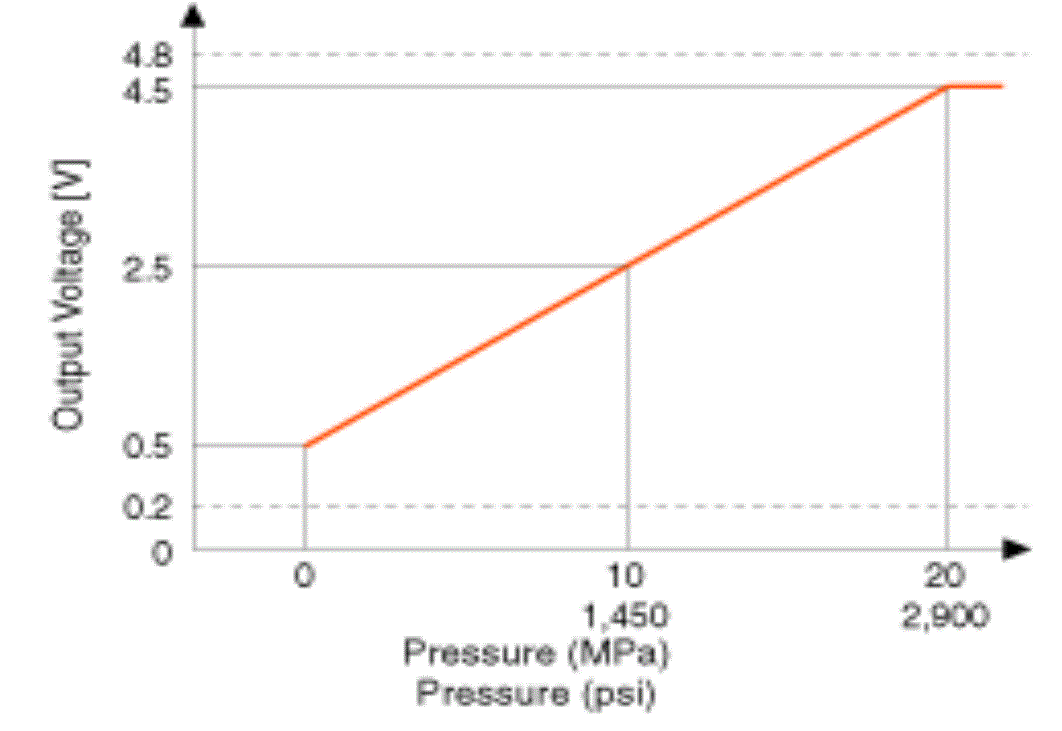

Fig 1: Rail Pressure Sensor Output Voltage Graph
G08809701Courtesy of HYUNDAI MOTOR AMERICA
