Low Pressure Fuel Line

Turn the ignition switch OFF, and then remove battery (-) cable.
Release the residual pressure in fuel line.
(Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the low pressure fuel quick-connector (A) and remove the installation nuts (B).

Fig 1: Identifying Low Pressure Fuel Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA

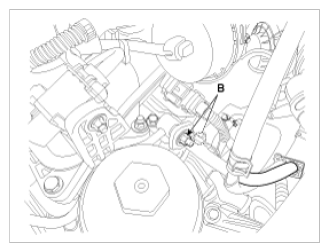

Fig 2: Identifying Installation Nuts
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Identifying Fuel Line
Courtesy of HYUNDAI MOTOR AMERICA

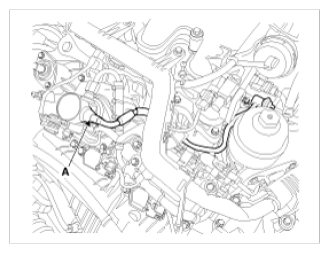

Disconnect the vapor hose (A) which is connected from the PCSV.

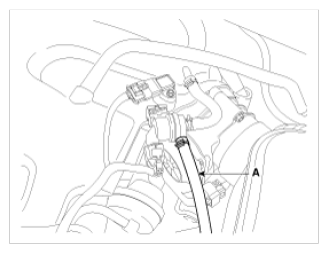

Fig 4: Identifying Vapor Hose
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel pump connector (A), FTPS connector (B), and fuel feed quick-connector (B) from the fuel pump.

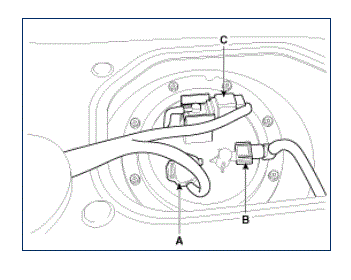

Fig 5: Identifying Fuel Pump, FTPS Connector And Fuel Feed Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle.
Remove the fuel tank.
(Refer to "FUEL TANK ")
Disconnect the vapor tube quick-connector (A).

Fig 6: Identifying Vapor Tube Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
Open the vapor tube and low fuel line fixing clip (A) to using driver.

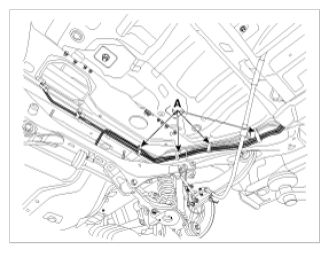

Fig 7: Identifying Low Fuel Line Fixing Clips
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel & brake line protect (A) from the fixing clip (B).

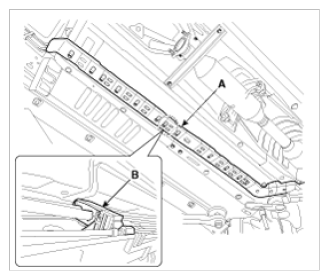

Fig 8: Identifying Fuel & Brake Line Protect With Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel line quick-connecter (A).

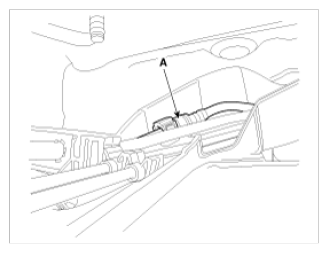

Fig 9: Identifying Fuel Line Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the installation nut (A) and then open the fuel line fixing clip (B) to engine room low.

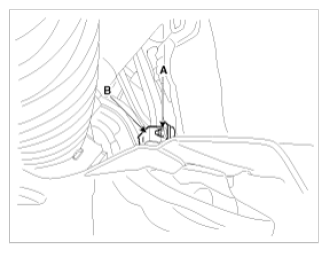

Fig 10: Identifying Installation Nut And Fuel Line Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA

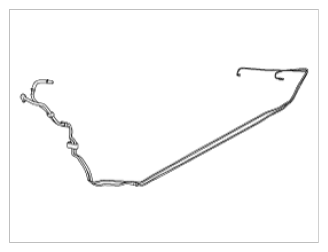

Remove the fuel line.

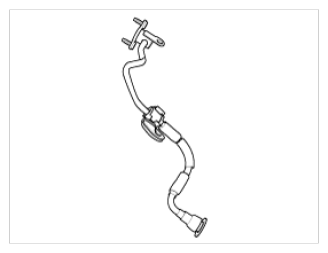

Fig 11: Identifying Fuel Line
