Fuel Sender
- Turn the ignition switch OFF, and then remove battery (-) cable.
- Remove the fuel pump assembly.

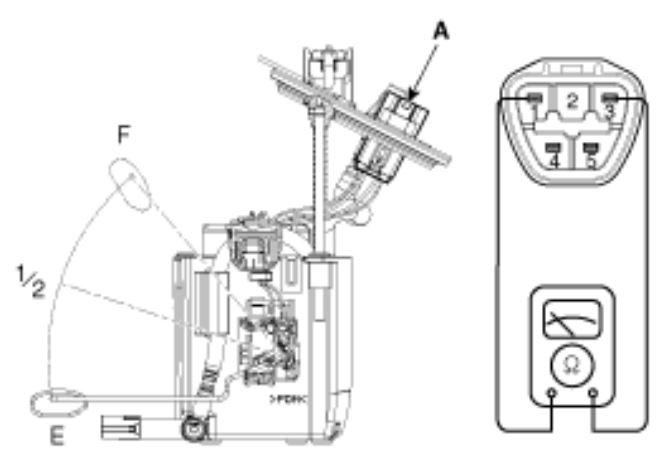

- Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.
Courtesy of HYUNDAI MOTOR AMERICA
| Pin No. |
Description |
| 1 |
Fuel sender ground |
| 2 |
- |
| 3 |
Fuel sender signal |
| 4 |
Fuel pump motor (+) |
| 5 |
Fuel pump motor ground |
- Also check that the resistance changes smoothly when the float is moved from "E" to "F".
| Position |
Resistance(Ω) |
Capacity (l
) |
| E |
198~205 |
5 |
| 1/2 |
64~66 |
37.5 |
| Sender (F) |
7~9 |
68 |
