Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the fuel pump service cover (A) in the trunk.

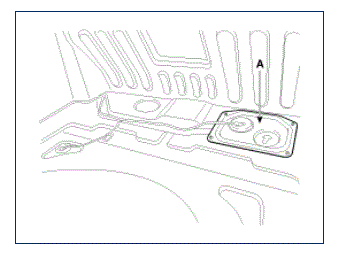

    Fig 1: Identifying Fuel Pump Service Cover
    G08809766Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  4. Disconnect the fuel feed tube quick connector (C).
  5. Remove the fuel pump plate cover (D) after removing the bolts.

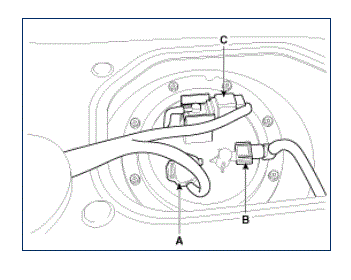

    Fig 2: Identifying Fuel Pump And Fuel Tank Pressure Sensor Connector With Plate Cover
    G08809767Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the fuel pump from the fuel tank.

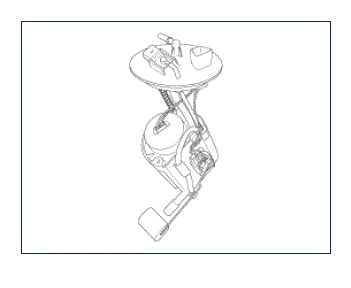

    Fig 3: Identifying Fuel Pump
    G08809768Courtesy of HYUNDAI MOTOR AMERICA
