Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")
Disconnect the fuel sender connector (A).

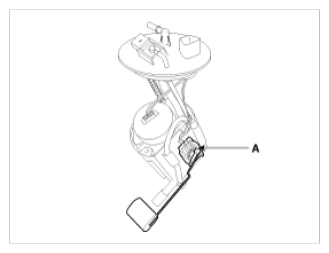

Fig 1: Identifying Fuel Sender Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuel sender (A) after releasing the fix hook.

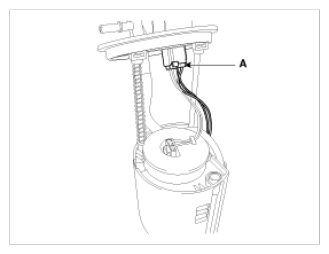

Fig 2: Identifying Fuel Sender
Courtesy of HYUNDAI MOTOR AMERICA

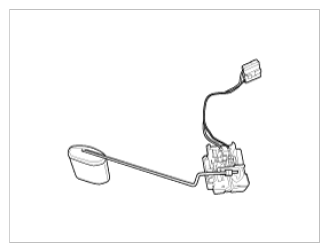

Fig 3: Identifying Fuel Sender Fixing Hook
Courtesy of HYUNDAI MOTOR AMERICA
