Components and Components Location: Components

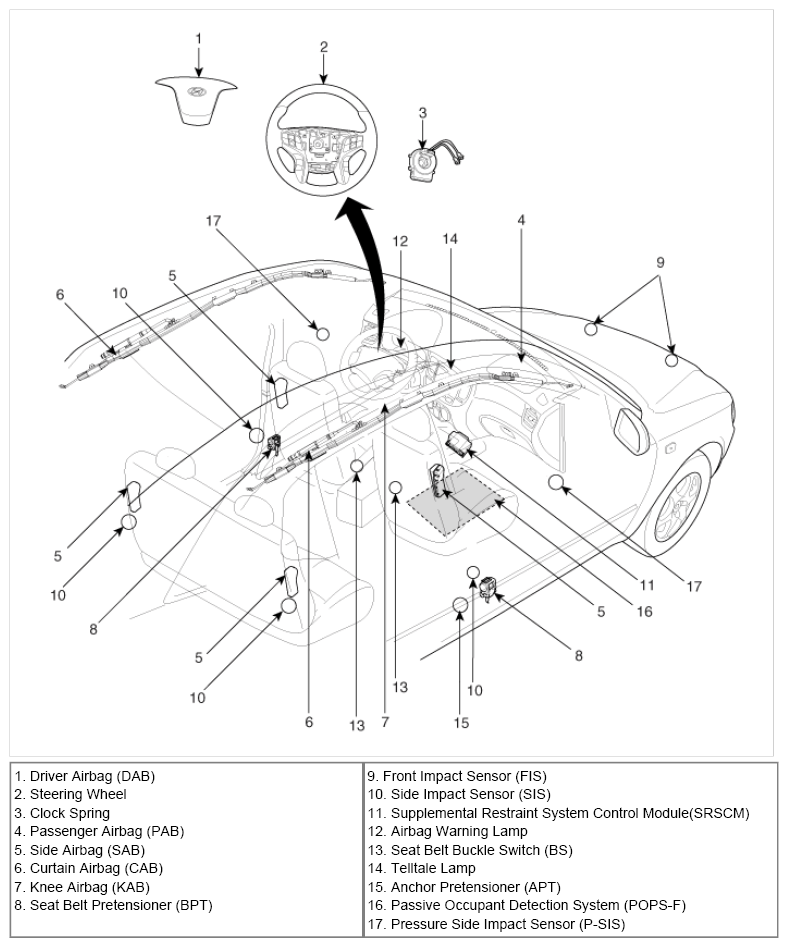

Fig 1: Identifying Restraint System Components
G08810251Courtesy of HYUNDAI MOTOR AMERICA
