Repair Procedures: Removal

Remove valve core and deflate the tire.
Remove the side of the tire bead area from the wheel using tire changing machine.

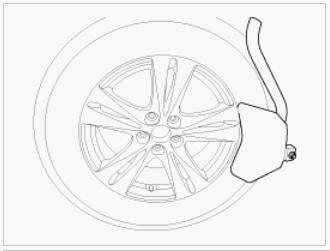

Fig 1: Removing Tire Bead From Wheel Using Tire Changing Machine
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- The tire bead should be broken Approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
- Avoid tire/tool contact with the valve on dismount.
- Dismount should end near the valve.
Rotate the wheel clockwise.

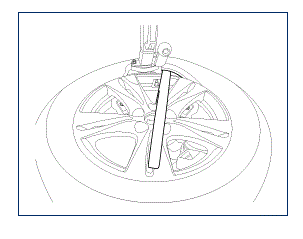

Fig 2: Rotating Wheel Clockwise
Courtesy of HYUNDAI MOTOR AMERICA

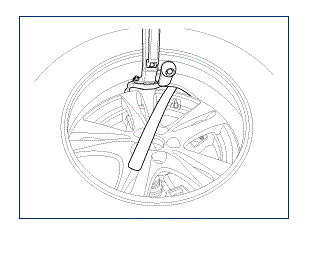

Fig 3: Rotating Wheel Clockwise Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
