Repair Procedures: Installation

  1. Installation is the reverse of removal.
    NOTE: After replacement or reinstallation procedure of the valve body assembly, must perform procedures below.
    • Adding automatic transaxle fluid.

      (Refer to "FLUID ")

    • Use new valve body gasket (A).

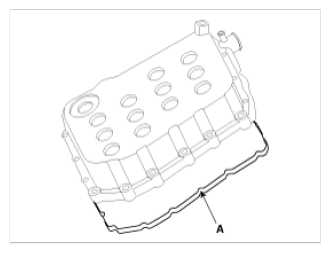

      Fig 1: Identifying Valve Body Gasket
      G08809932Courtesy of HYUNDAI MOTOR AMERICA
