Repair Procedures: Removal

Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover (A).
Tightening torque:

7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

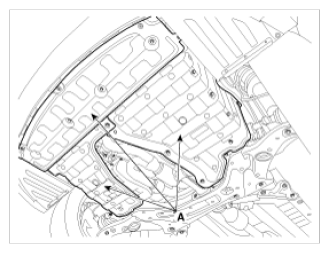

Fig 1: Identifying Engine Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "FLUID ")
Remove the valve body cover (B) and eyebolt (A).
Tightening torque:
1. 4.9 ~ 5.9 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)
2. 13.8 ~ 14.7N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.8 lb-ft)
  CAUTION: Always replace the gasket of the eyebolt use new one whenever loosening eyebolt.

  NOTE: Remove installation bolts in the engine compartment first and then remove others under the vehicle.

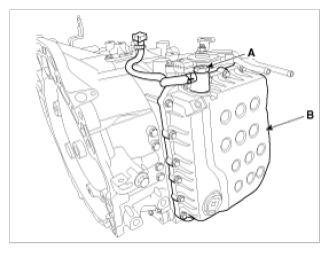

  Fig 2: Identifying Valve Body Cover And Eyebolt
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the plate and the detent spring (A) after removing the bolt.
Tightening torque:

24.5 ~ 35.3 N.m (2.5 ~ 3.6 kgf.m, 18.1 ~ 26.0 lb-ft)

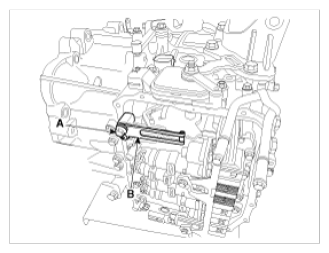

Fig 3: Removing Plate And Detent Spring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bolt (3ea) after disconnecting the solenoid valve connector (A) and the oil temperature sensor connector (B).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

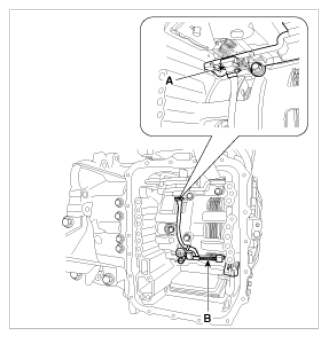

Fig 4: Identifying Solenoid Valve And Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body assembly (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

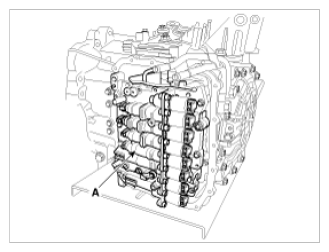

Fig 5: Identifying Valve Body Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the input & output speed sensor connector (A).
Remove the input & output speed sensor (B) after removing the bolts (2ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

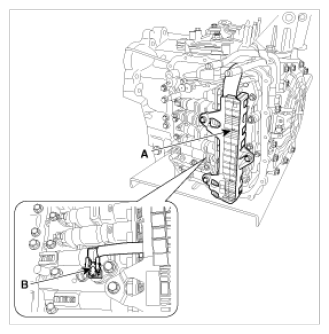

Fig 6: Identifying Input & Output Speed Sensor With Connector
Courtesy of HYUNDAI MOTOR AMERICA
