Components and Components Location: Components

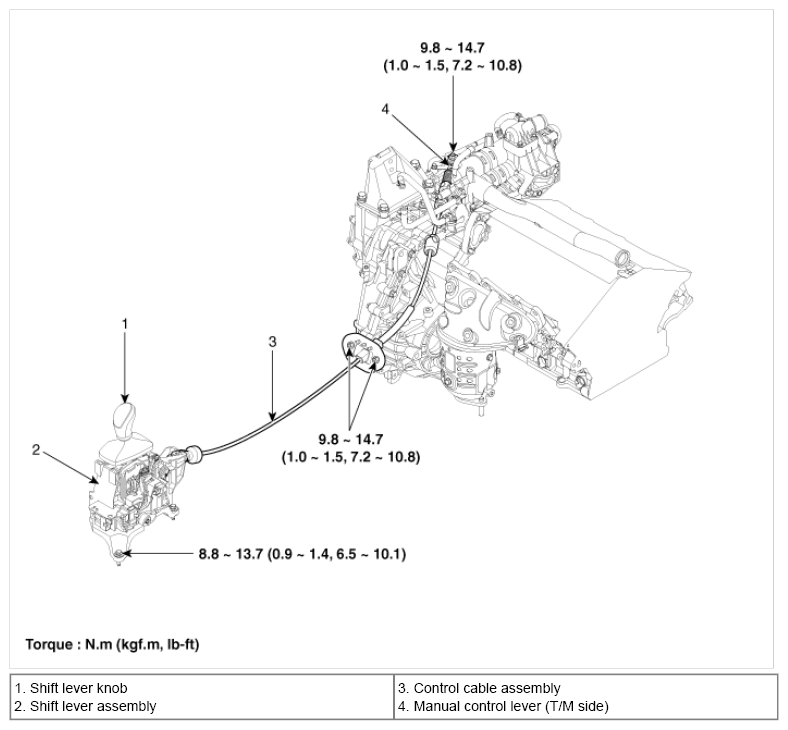

Fig 1: Shift Cable Replacement Components With Torque Specifications
G08809990Courtesy of HYUNDAI MOTOR AMERICA
