Adjusting Method For T/M Control Cable
- Make sure vehicle does not roll before setting room side shift lever and Automatic Transaxle (AT) side manual control lever to "N" position.
- Connect room side shift lever and control cable.

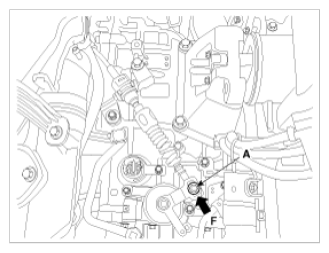

- Push cable to "F" direction shown to eliminate FREE PLAY.
- Tighten adjusting nut (A).
Tightening torque:
9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.9 lb-ft)
- After adjusting, check to be sure that this part operates as designed at each range of Automatic Transaxle (AT) side corresponding to each position of room lever.
