Repair Procedures: Removal

Remove the center console assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")

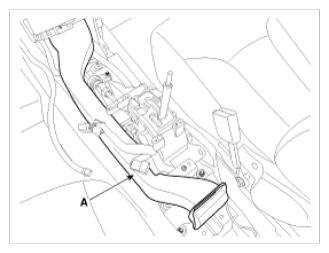

Remove the duct (A).

Fig 1: Identifying Center Console Assembly Duct
Courtesy of HYUNDAI MOTOR AMERICA

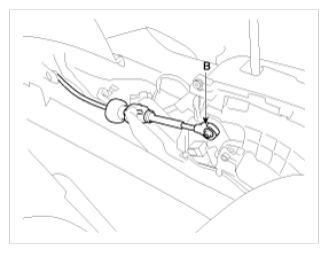

Remove the control cable (B).

Fig 2: Identifying Control Cable
Courtesy of HYUNDAI MOTOR AMERICA

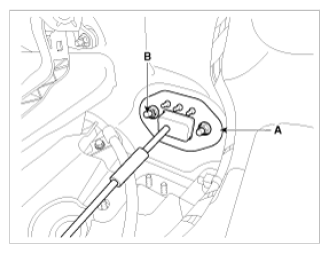

Remove the control cable assembly in the vehicle after removing the nuts (B) and the retainer (A).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.9 lb-ft)

Fig 3: Identifying Control Cable Assembly Retainer And Nuts
Courtesy of HYUNDAI MOTOR AMERICA

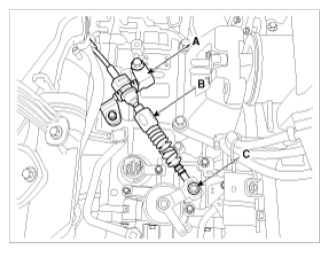

Remove the nut (C).
Remove the cable (B) from the bracket (A) at transaxle assembly side.
(Refer to "AUTOMATIC TRANSAXLE ")

Fig 4: Identifying Transaxle Assembly Cable, Bracket And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable inside of cab.
