Repair Procedures: Replacement

  1. Turn ignition switch OFF.
  2. Disconnect the negative (-) battery cable.
  3. Disconnect the TCM connector (A).

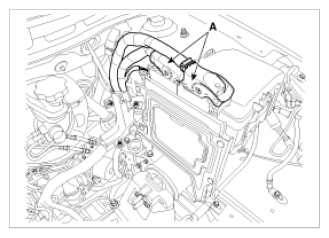

    Fig 1: Identifying TCM Connector
    G08809912Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the Transaxle Control Module (TCM) (C) after removing the mounting bolts (A) and nut (B).

    TCM installation bolt/nut:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

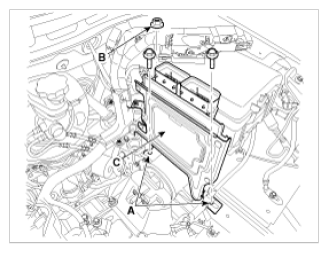

    Fig 2: Identifying Transaxle Control Module Mounting Bolts And Nuts
    G08809913Courtesy of HYUNDAI MOTOR AMERICA
