Transaxle Oil Temperature Sensor: Specifications

• Type: Negative Thermal Coefficient (NTC) Type

Temp.[(°C)°F]	Resistance (kΩ)
(-40) -40	48.1
(-20) -4.0	15.6
(0) 32.0	5.88
(20) 68.0	2.51
(40) 104.0	1.11
(60) 140.0	0.61
(80) 176.0	0.32
(100) 212.0	0.18
(120) 248.0	0.10
(140) 284.0	0.06
(150) 302.0	0.05

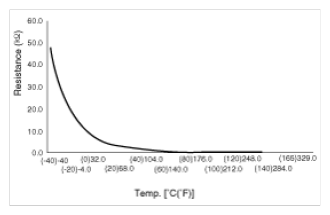

Fig 1: Transaxle Oil Temperature Sensor Resistance Versus Temperature Graph

Courtesy of HYUNDAI MOTOR AMERICA
