Repair Procedures: Removal

  1. Engine cover.

    (Refer to "ENGINE COVER ")

  2. Air cleaner assembly and air duct.

    (Refer to "AIR CLEANER ")

  3. Battery and battery tray.

    (Refer to "BATTERY ")

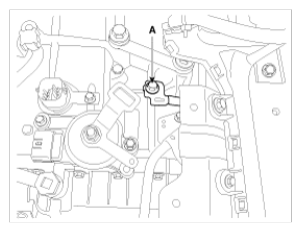

  4. Remove the ground line after removing the bolt (A).
    Fig 1: Identifying Ground Line Mounting Bolt
    G08809852Courtesy of HYUNDAI MOTOR AMERICA

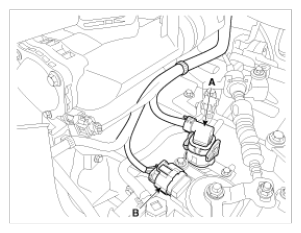

  5. Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).
    Fig 2: Identifying Solenoid Valve And Inhibitor Switch Connector
    G08809853Courtesy of HYUNDAI MOTOR AMERICA

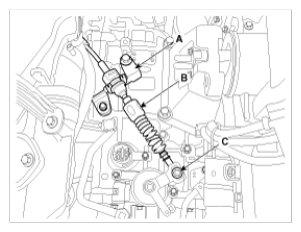

  6. Remove the control cable (B) after removing the nut (C) and the bolt (A).

    Tightening torque:

    1. (A) 7.8 ~ 11.8 N.m (1.0 ~ 1.5 kgf.m, 5.8 ~ 8.7 lb-ft)
    2. (C) 14.7 ~21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)
      Fig 3: Identifying Control Cable, Mounting Bolt And Nut
      G08809854Courtesy of HYUNDAI MOTOR AMERICA

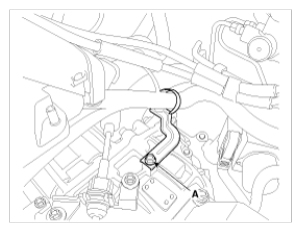

  7. Remove the wiring bracket installation bolt (A).
    Fig 4: Identifying Wiring Bracket Installation Bolt
    G08809855Courtesy of HYUNDAI MOTOR AMERICA

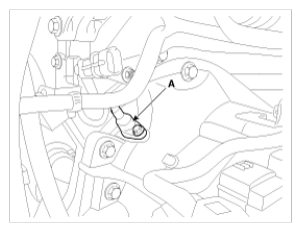

  8. Remove the Crankshaft Position Sensor (CKPS) (A).
    Fig 5: Identifying Crankshaft Position Sensor
    G08809856Courtesy of HYUNDAI MOTOR AMERICA

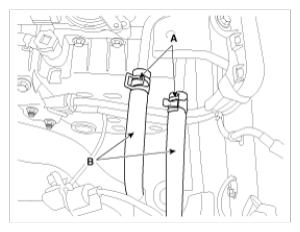

  9. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 6: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
    G08809857Courtesy of HYUNDAI MOTOR AMERICA

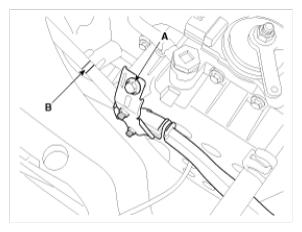

  10. Remove the wiring bracket installation bolt (A) and clip (B).
    Fig 7: Identifying Wiring Bracket Installation Bolt And Clip
    G08809858Courtesy of HYUNDAI MOTOR AMERICA

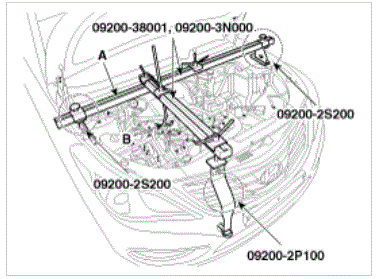

  11. After assembling the T-shaped beam, install the supporter (SST No: 09200-2S200) to the beam of SST (09200-38001, 09200-3N000).
  12. Install the adaptor (SST No: 09200-2P100) to the beam of (SST No: 09200-38001, 09200-3N000).
  13. Install the assembled SST (A) on the engine room.
  14. Hang the ring (B) on the engine hanger, support the engine.
    NOTE: To prevent slip, the support supports the body securely.
    Fig 8: Supporting Engine Using Ring
    G08809859Courtesy of HYUNDAI MOTOR AMERICA

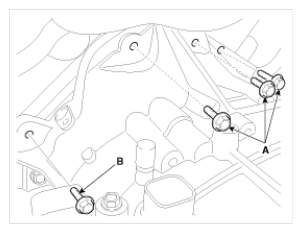

  15. Remove the automatic transaxle upper mounting bolt (A) and the starter motor mounting bolt (B).

    Tightening torque:

    1. 63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)
    2. 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
      Fig 9: Identifying Automatic Transaxle Upper Mounting Bolt And Starter Motor Mounting Bolt
      G08809860Courtesy of HYUNDAI MOTOR AMERICA

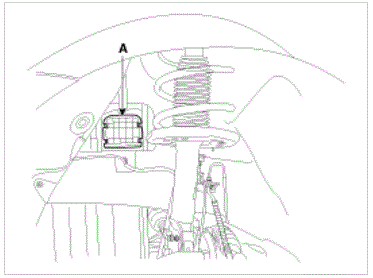

  16. Remove the cover (A).
    Fig 10: Identifying Starter Motor Cover
    G08809861Courtesy of HYUNDAI MOTOR AMERICA

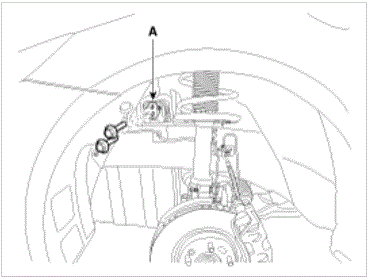

  17. Remove the automatic transaxle support bracket mounting bolt (A).

    Tightening torque:

    88.2 ~ 107.8 N.m (9.0 ~ 11.0 Kgf.m, 65 ~ 79.5 lb-ft)

    Fig 11: Identifying Automatic Transaxle Support Bracket Mounting Bolt
    G08809862Courtesy of HYUNDAI MOTOR AMERICA

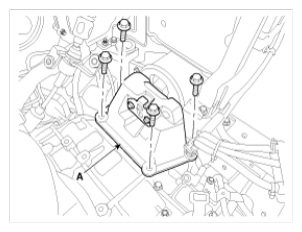

  18. Remove the automatic transaxle mounting support bracket (A).

    Tightening torque:

    (A) 58.8 ~ 78.4 N.m (6.0 ~ 8.0 kgf.m, 43.3 ~ 57.8 lb-ft)

    Fig 12: Identifying Automatic Transaxle Mounting Support Bracket And Bolts
    G08809863Courtesy of HYUNDAI MOTOR AMERICA
  19. Lift the vehicle with a jack.

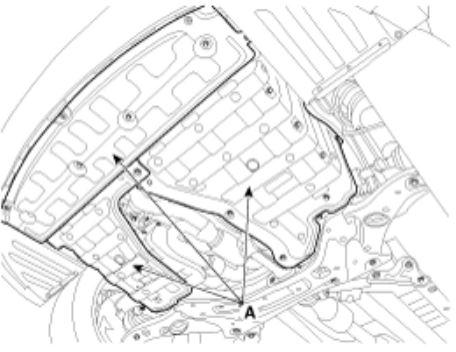

  20. Remove the under cover (A).

    Tightening torque:

    7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

    Fig 13: Identifying Engine Under Cover
    G08809864Courtesy of HYUNDAI MOTOR AMERICA
  21. Drive shaft assembly.

    (Refer to "FRONT DRIVESHAFT ")

  22. Front muffler assembly.

    (Refer to "FRONT MUFFLER ")

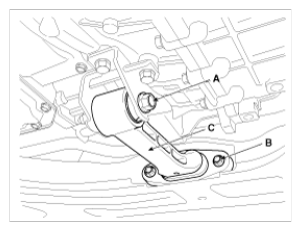

  23. Loosen the bolt (A) & nut (B) and then remove the roll rod stopper (C).

    Tightening torque:

    1. 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)
    2. 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
      Fig 14: Identifying Roll Rod Stopper Mounting Bolt And Nut
      G08809865Courtesy of HYUNDAI MOTOR AMERICA

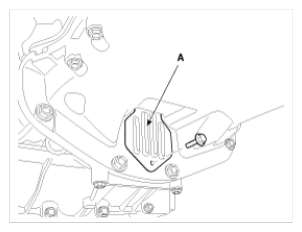

  24. Remove the dust cover (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    Fig 15: Identifying Dust Cover
    G08809866Courtesy of HYUNDAI MOTOR AMERICA
  25. Remove the torque converter mounting bolt (A-6 ea) with rotating the crankshaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

    Fig 16: Identifying Torque Converter Mounting Bolt
    G08809867Courtesy of HYUNDAI MOTOR AMERICA

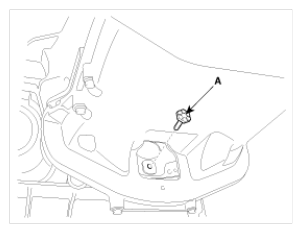

  26. Remove the automatic transaxle with a jack after removing the mounting bolt (B-4 ea, C-1 ea).

    Tightening torque:

    1. (B) 39.2 ~ 46.1 N.m (4.0 ~ 4.7 kgf.m, 28.9 ~ 34.0 lb-ft)
    2. (C) 78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)
    Fig 17: Identifying Automatic Transaxle Mounting Bolts
    G08809868Courtesy of HYUNDAI MOTOR AMERICA

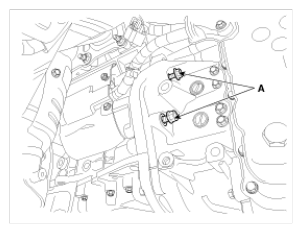

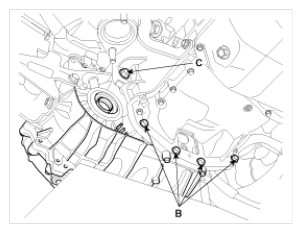

  27. Remove the start motor mounting bolt (A).

    Tightening torque:

    42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

    Fig 18: Identifying Start Motor Mounting Bolts
    G08809869Courtesy of HYUNDAI MOTOR AMERICA
