Power Window Main Switch

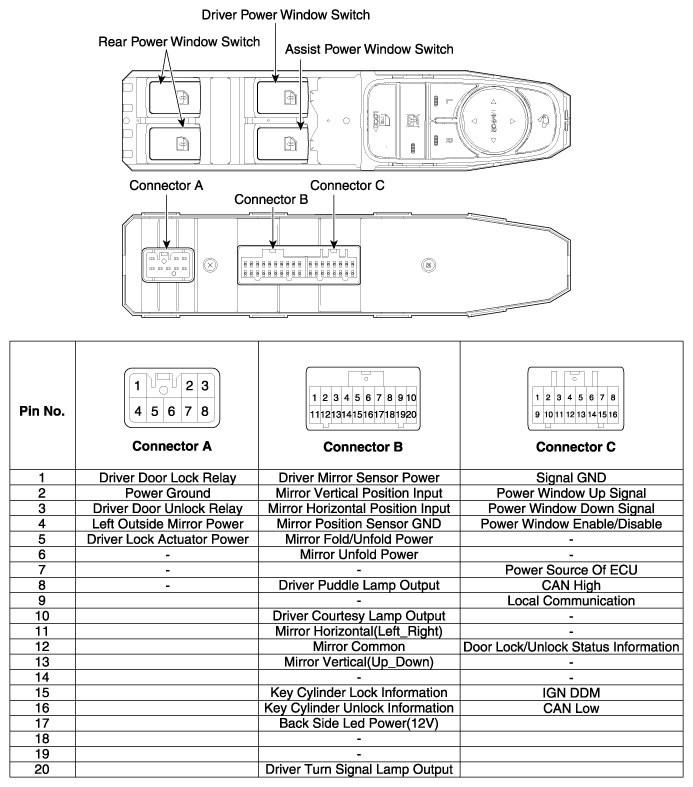

Fig 1: Identifying Power Window Main Switch And Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
