Start Stop Button: Component

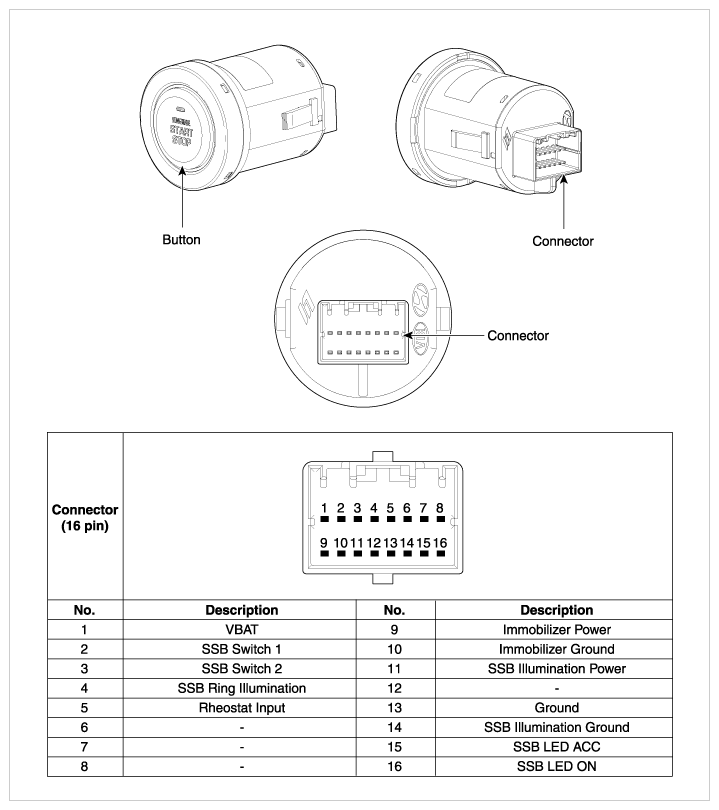

Fig 1: Identifying Start Stop Button Connector Pins

G09791486

Courtesy of HYUNDAI MOTOR AMERICA
