Starting System: Troubleshooting

NOTE:
  • The battery must be in good condition and fully charged for this troubleshooting.

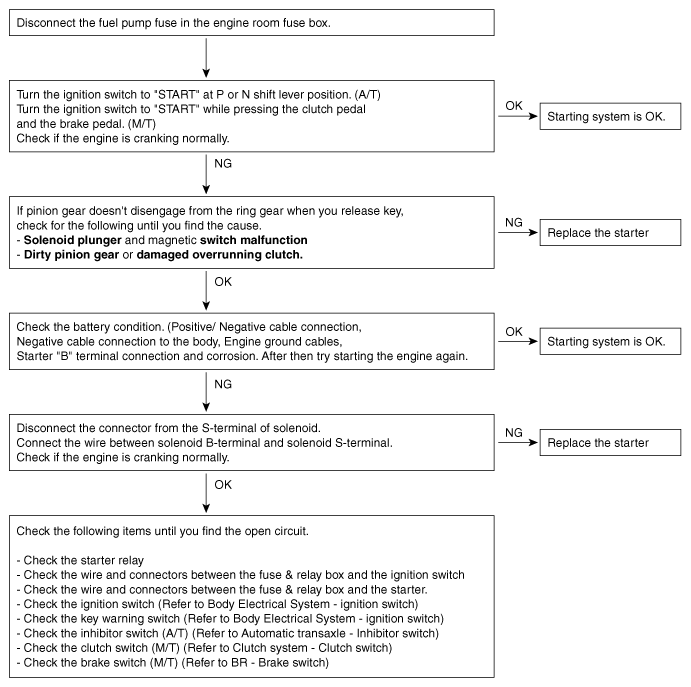

Fig 1: Troubleshooting Flow Chart
G09789200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
