Circuit Diagram

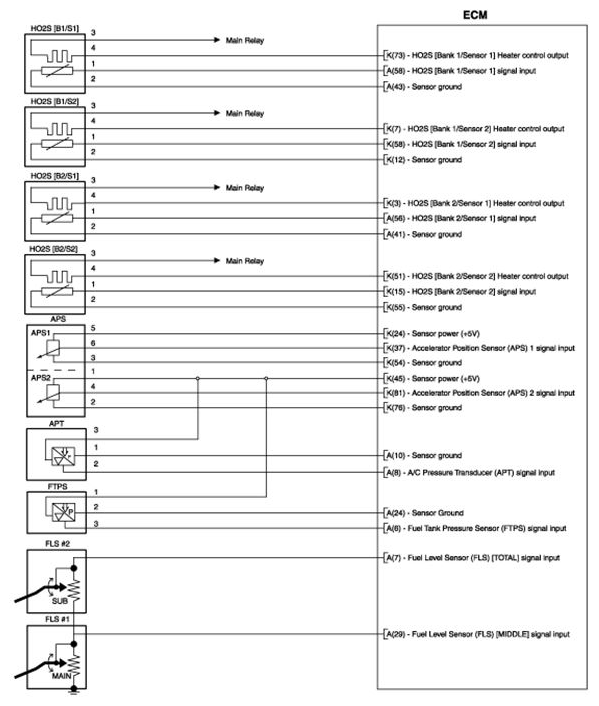

Fig 1: Engine Control Module System Circuit Diagram (1 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

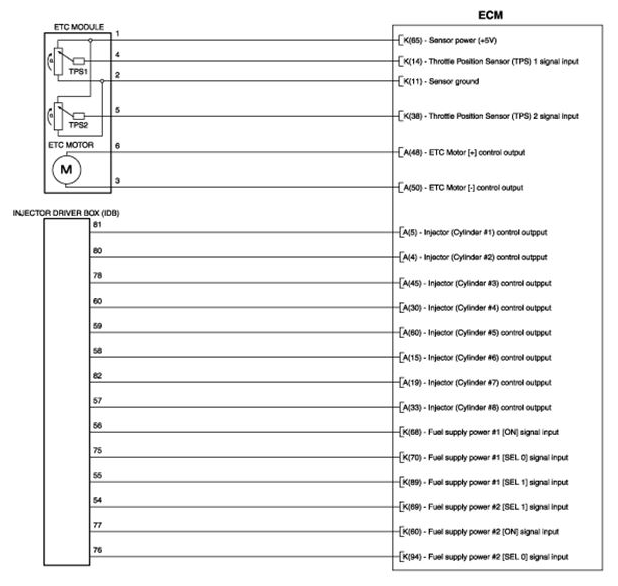

Fig 2: Engine Control Module System Circuit Diagram (2 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

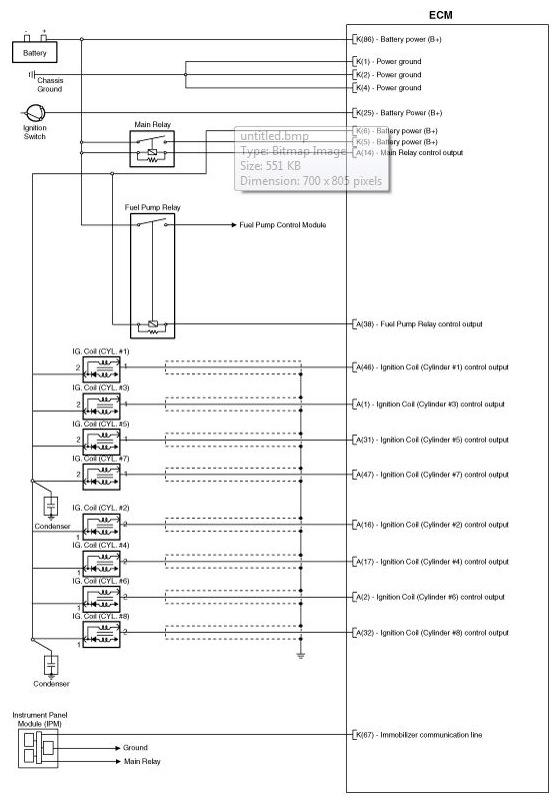

Fig 3: Engine Control Module System Circuit Diagram (3 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

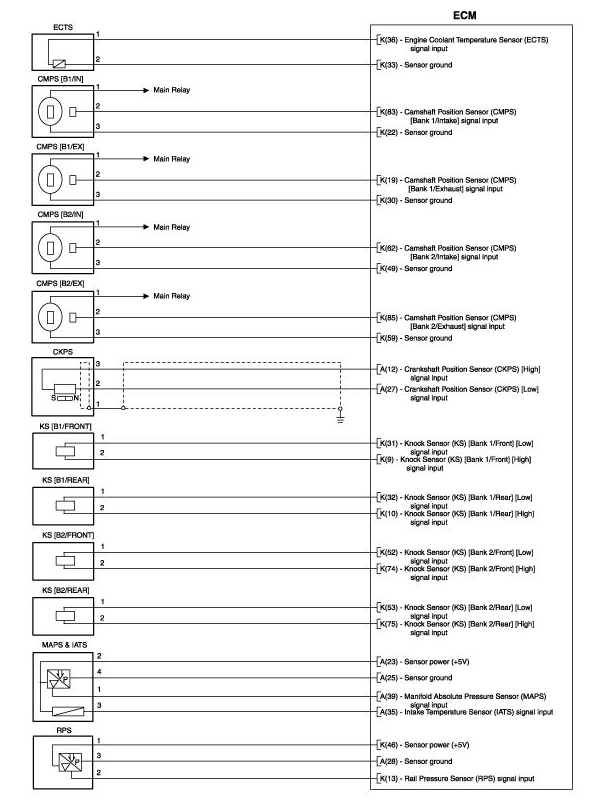

Fig 4: Engine Control Module System Circuit Diagram (4 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA

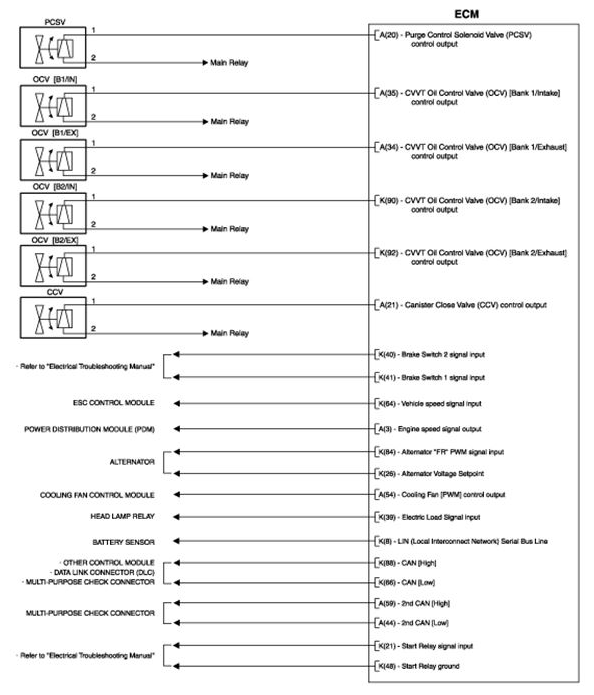

Fig 5: Engine Control Module System Circuit Diagram (5 Of 5)

Courtesy of HYUNDAI MOTOR AMERICA
