Circuit Diagram

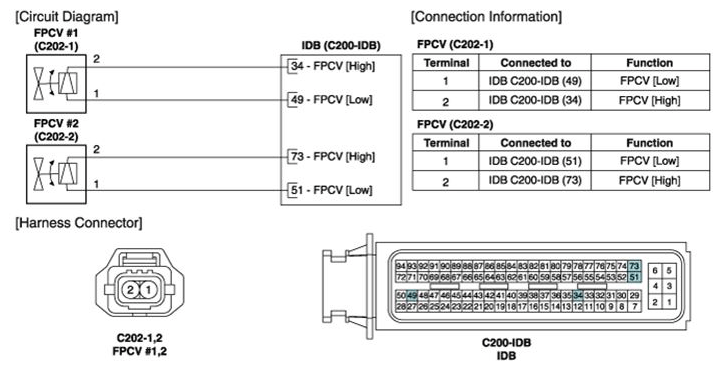

Fig 1: Fuel Pressure Control Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
