Signal Waveform

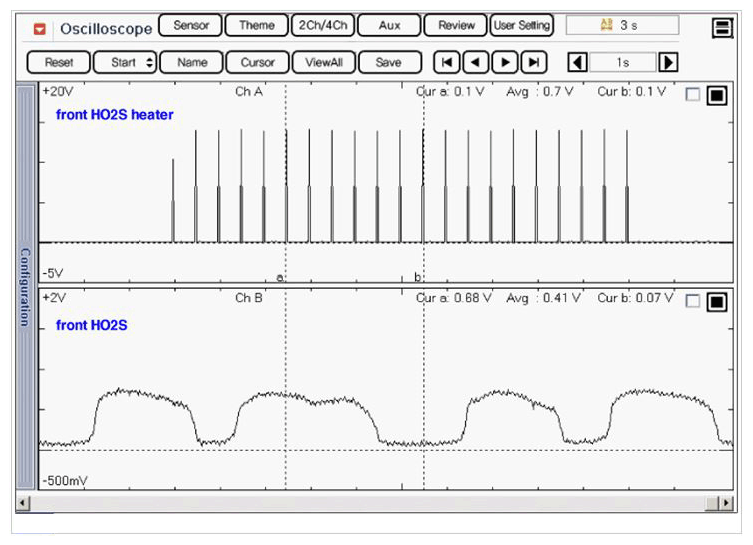

Fig 1: Display - Signal Waveforms Of Front HO2S And Heater At Idle Screen
G09789383Courtesy of HYUNDAI MOTOR AMERICA

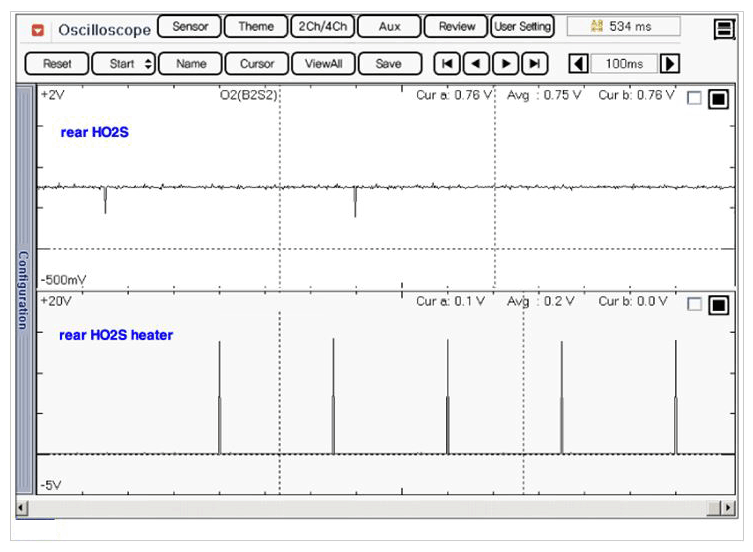

Fig 2: Display - Signal Waveforms Of Rear HO2S And Heater At Idle Screen
G09789384Courtesy of HYUNDAI MOTOR AMERICA

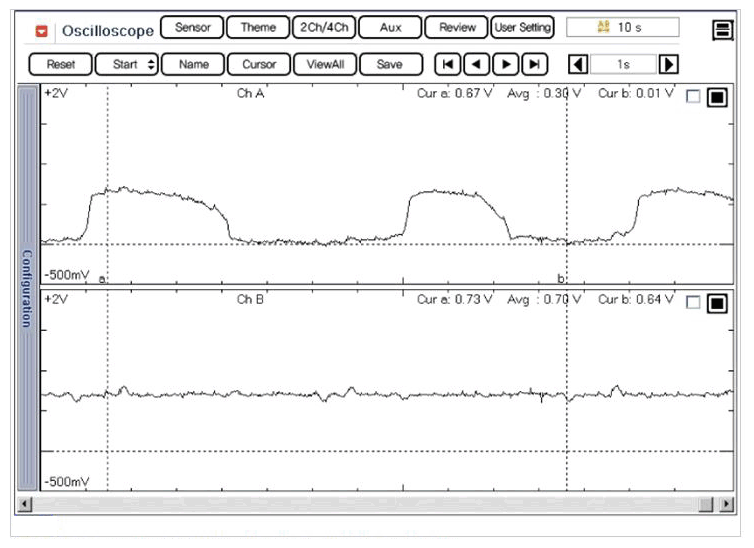

Fig 3: Display - Typical Waveforms Of Front HO2S And Rear HO2S Screen
G09789385Courtesy of HYUNDAI MOTOR AMERICA
