Circuit Diagram

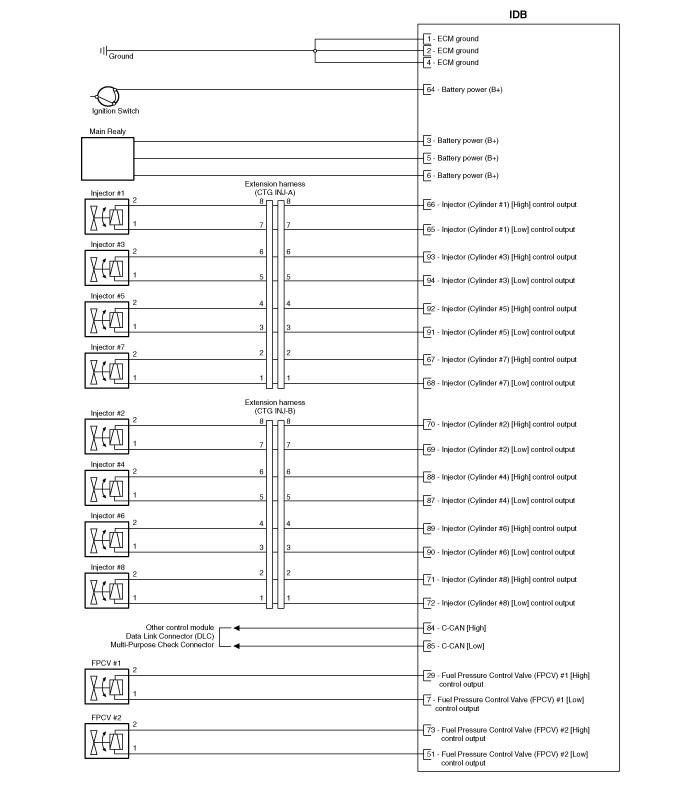

Fig 1: Injector Drive Box - Circuit Diagram (1 Of 2)
G00551207

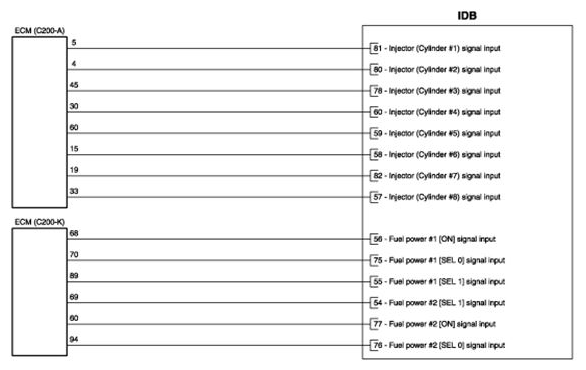

Fig 2: Injector Drive Box - Circuit Diagram (2 Of 2)
G09789346Courtesy of HYUNDAI MOTOR AMERICA
