Repair procedures: Inspection
[Fuel sender]
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel pump assembly.
(Refer to "FUEL PUMP ")
- Using an ohmmeter, measure the resistance between terminals 5 and 6 of sender connector (A) at each float level.
Pin No. Description 1 Fuel pump (U) phase control 2 Fuel pump (V) phase control 3 Fuel pump (W) phase control 4 Ground 5 Fuel sender signal 6 Fuel sender ground - Check that the resistance is within the specification.
Position Resistance (Ω) Capacity (l ) L 88.9 ~ 90.9 6 1/4 29.9 ~ 31.9 24 1/2 3 ~ 5 40 H 3 ~ 5 74 Information
[Fuel pump three phase coil inspection]
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel pump assembly.
(Refer to "FUEL PUMP ")

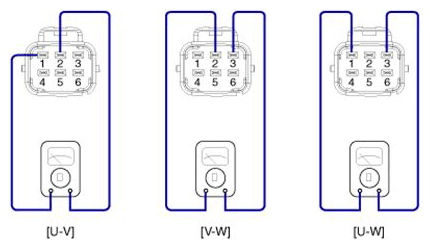

- Using an ohmmeter, measure the resistance between terminals U-V, V-W, W-U.
- Check that the resistance is within the specification.
Specification: 0.09 ~ 0.13 Ω
Pin No. Description 1 Fuel pump (U) phase control 2 Fuel pump (V) phase control 3 Fuel pump (W) phase control 4 Ground 5 Fuel sender signal 6 Fuel sender ground
[Fuel Pump]
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuel pump assembly.
(Refer to FUEL PUMP .
- Connect the fuel pump connector (A) and fuel pressure sensor connector (B).
- Reconnect the negative (-) battery cable.
- Turn ignition switch ON or cracking at the no-load state.
- Operate the fuel pump.CAUTION:
- Cranking the Max. 3sec.
- Check the normal state of the fuel pump.
