Components and Components Location: Components: Notes

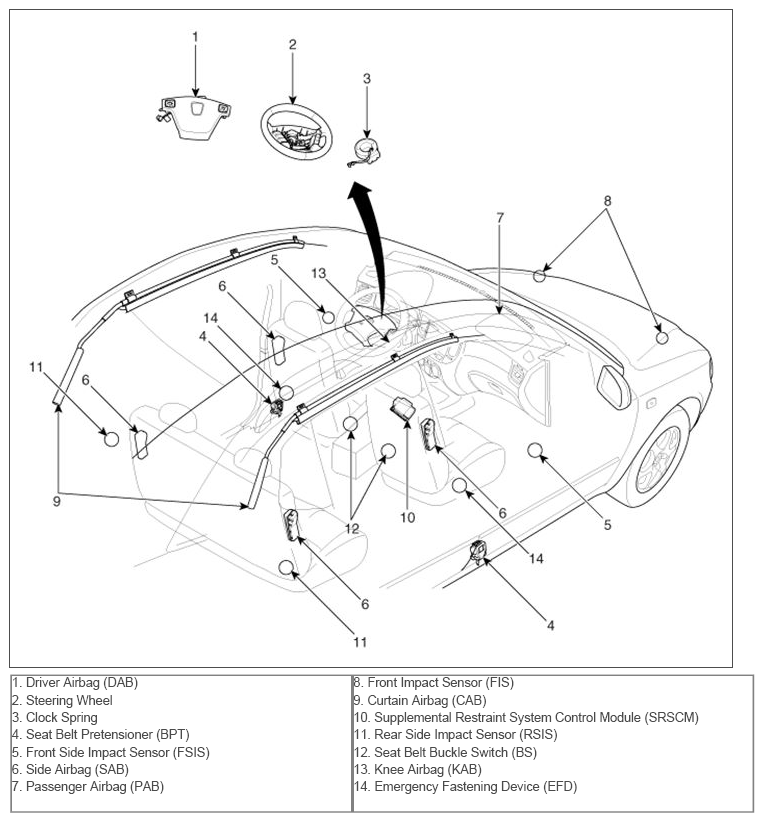

Fig 1: Identifying Restraints Components
G09790101Courtesy of HYUNDAI MOTOR AMERICA
