Repair Procedures: Inspection

  1. Check signal waveform of Input speed sensor using the GDS.

    Specification:  Refer to Fig 1 .

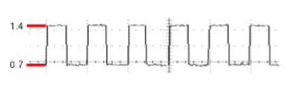

    Fig 1: Input Speed Sensor Signal Waveform
    G09789598Courtesy of HYUNDAI MOTOR AMERICA
