Repair Procedures: Installation

  1. Installation is reverse of removal.
    CAUTION:
    1. In the case of the vehicle equipped with immobilizer or button engine start system, Perform "Key teaching" procedure together. (Refer to TEACHING MODE "Immobilizer" or "BUTTON ENGINE START SYSTEM .
    2. After exchanging TCM, input the EOL (End of line). (Refer to "Repair Procedures  .
    3. When replacing the TCM, reset the automatic transmissions values by using the GDS.
    4. Perform TCM learning after replacing the TCM.

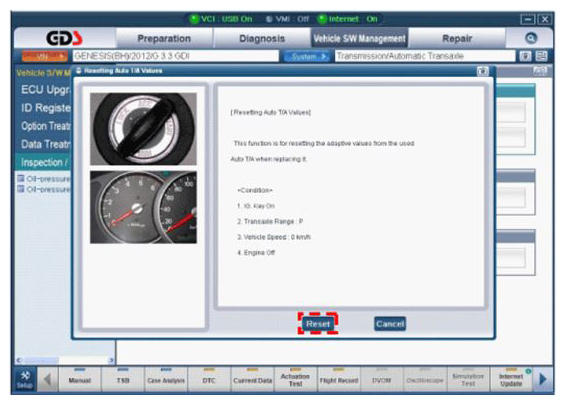

    Fig 1: Display - Resetting Auto T/A Values Screen
    G09789590Courtesy of HYUNDAI MOTOR AMERICA
