Components Location

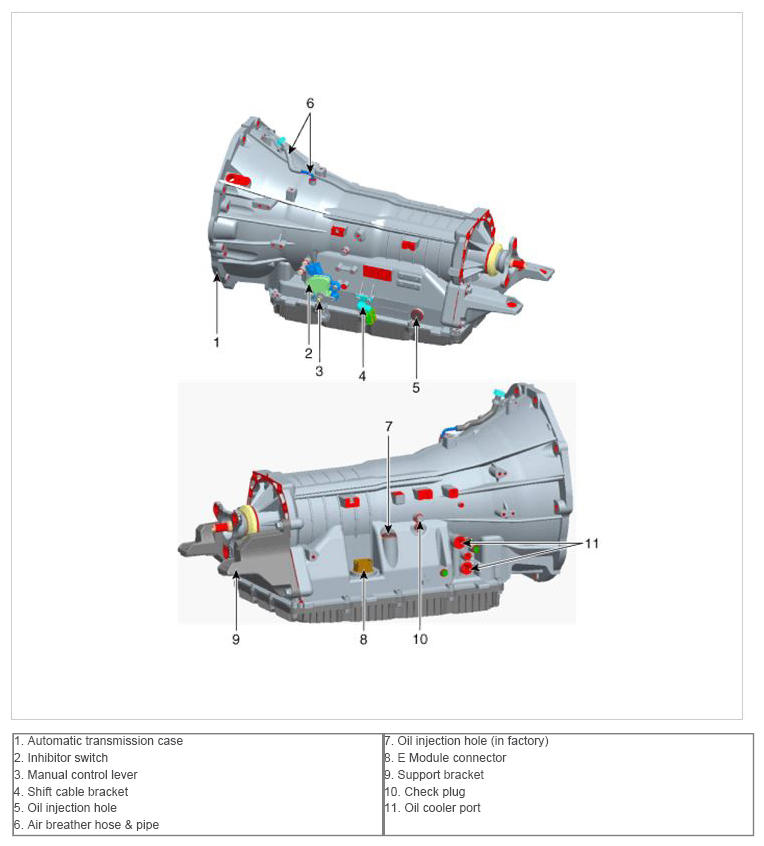

Fig 1: Identifying Automatic Transmission Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
