EOL Input procedure

• Transmission assembly replacement

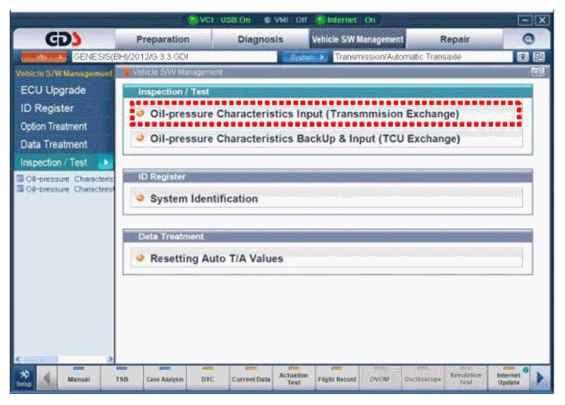

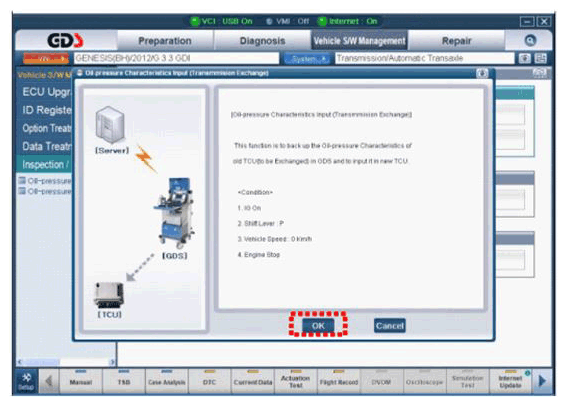

  Fig 1: Display - EOL Input Procedure Screen (Transmission Assembly Replacement; 1 Of 2)

  Courtesy of HYUNDAI MOTOR AMERICA

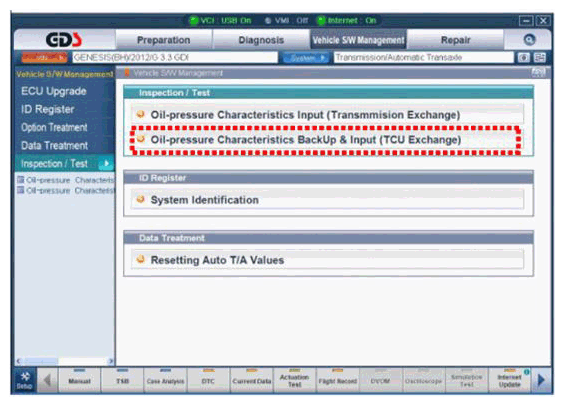

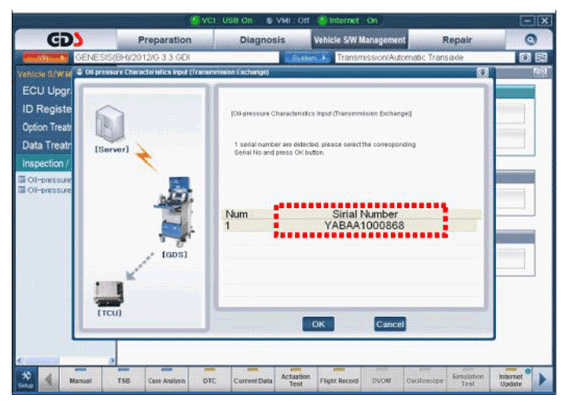

Fig 2: Display - EOL Input Procedure Screen (Transmission Assembly Replacement; 2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Internet: On

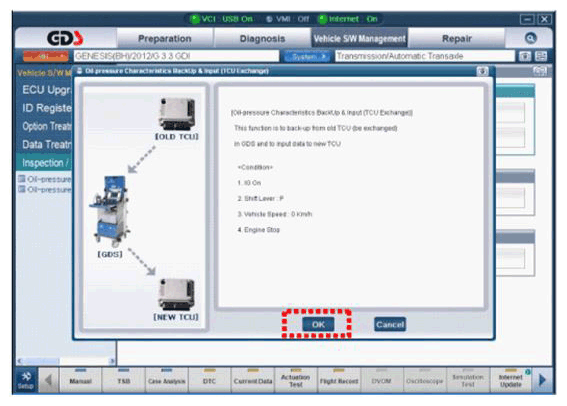

Fig 3: Display - EOL Input Procedure Screen (Internet On; 1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

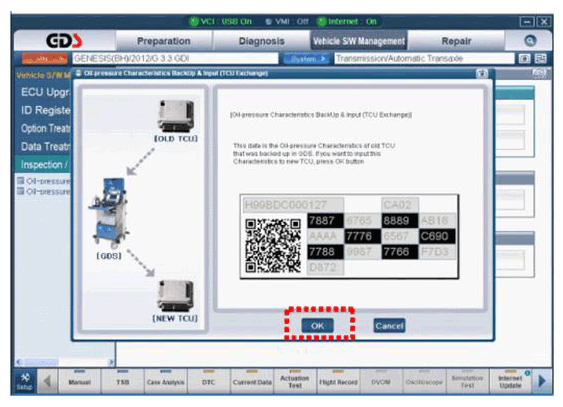

Fig 4: Display - EOL Input Procedure Screen (Internet On; 2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Internet: Off

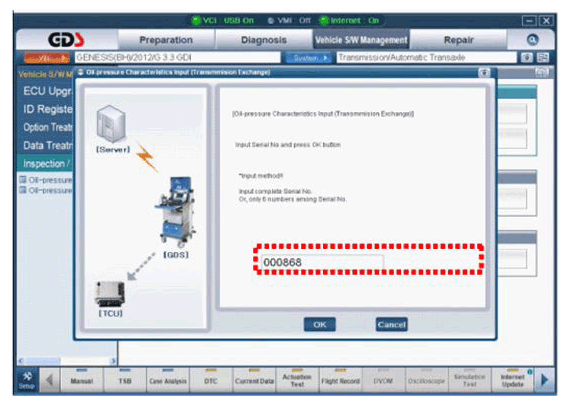

Fig 5: Display - EOL Input Procedure Screen (Internet Off; 1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Display - EOL Input Procedure Screen (Internet Off; 2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

• TCM replacement

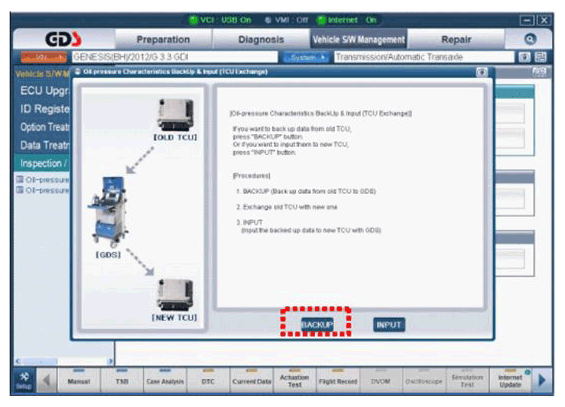

  Fig 7: Display - EOL Input Procedure Screen (TCM Replacement; 1 Of 7)

  Courtesy of HYUNDAI MOTOR AMERICA

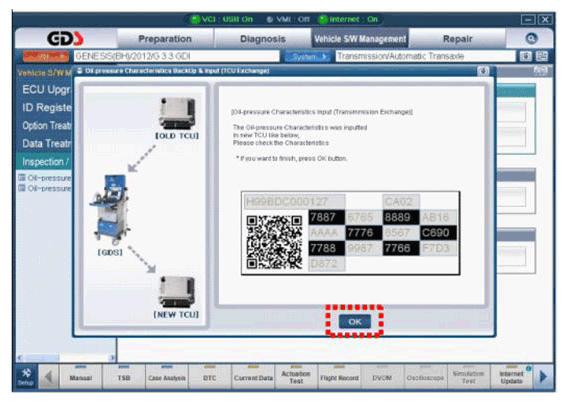

Fig 8: Display - EOL Input Procedure Screen (TCM Replacement; 2 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

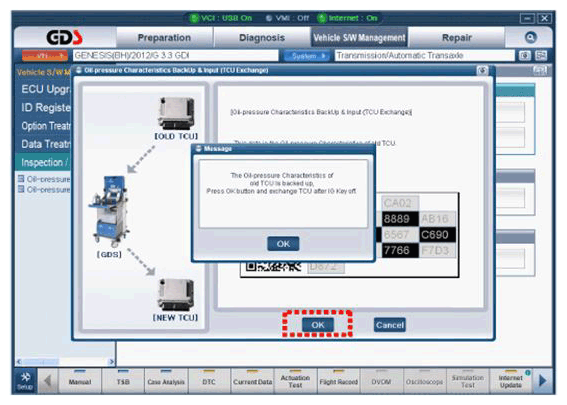

Fig 9: Display - EOL Input Procedure Screen (TCM Replacement; 3 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

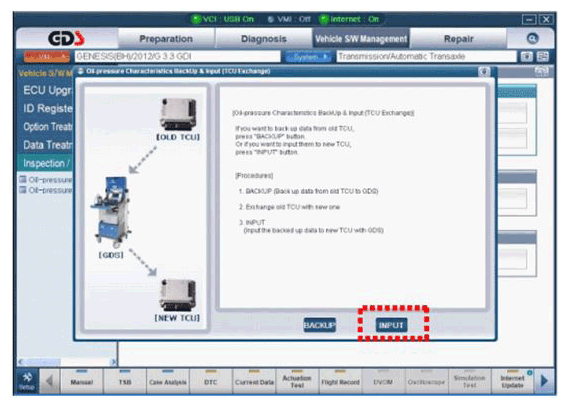

Fig 10: Display - EOL Input Procedure Screen (TCM Replacement; 4 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

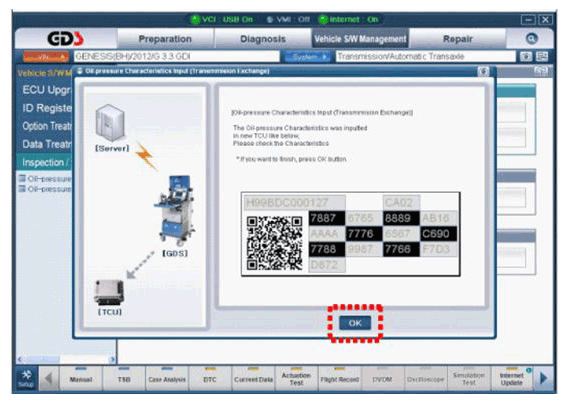

Fig 11: Display - EOL Input Procedure Screen (TCM Replacement; 5 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

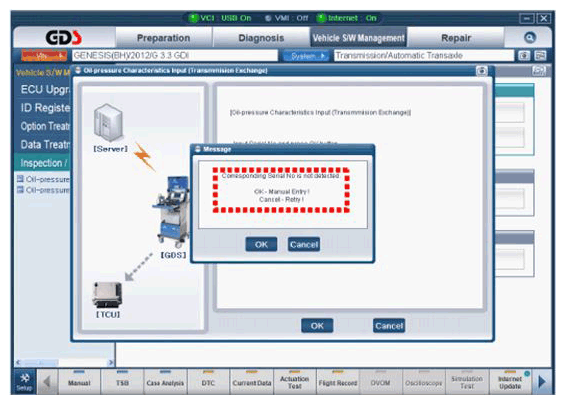

Fig 12: Display - EOL Input Procedure Screen (TCM Replacement; 6 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 13: Display - EOL Input Procedure Screen (TCM Replacement; 7 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA
