Circuit Diagram: (A/T)

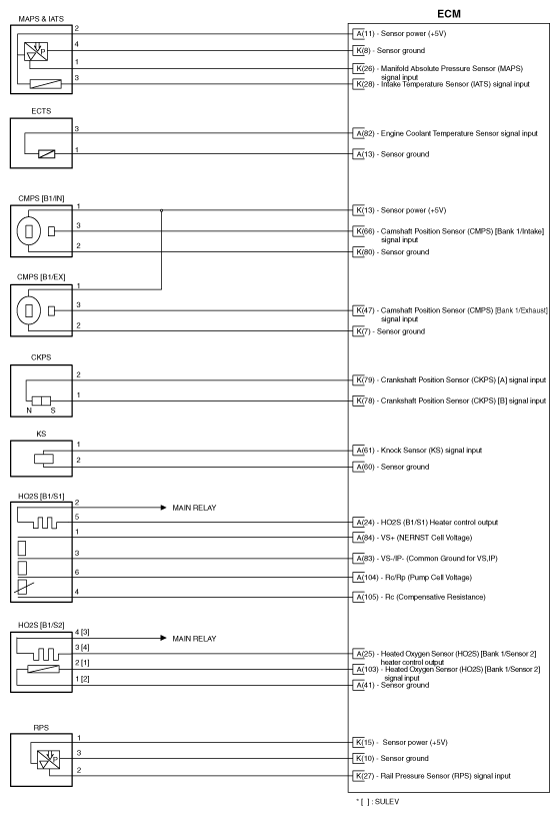

Fig 1: Engine Control Module System Circuit Diagram (A/T; 1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

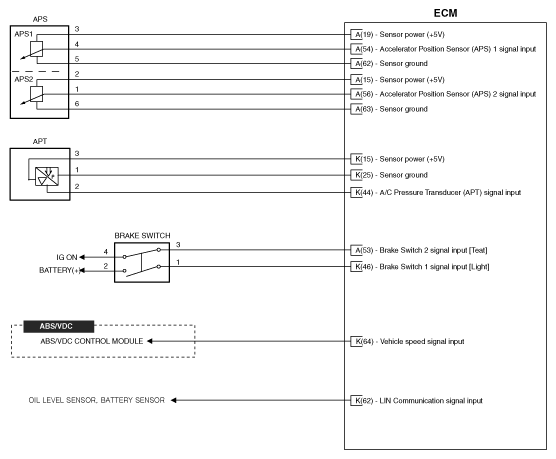

Fig 2: Engine Control Module System Circuit Diagram (A/T; 2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

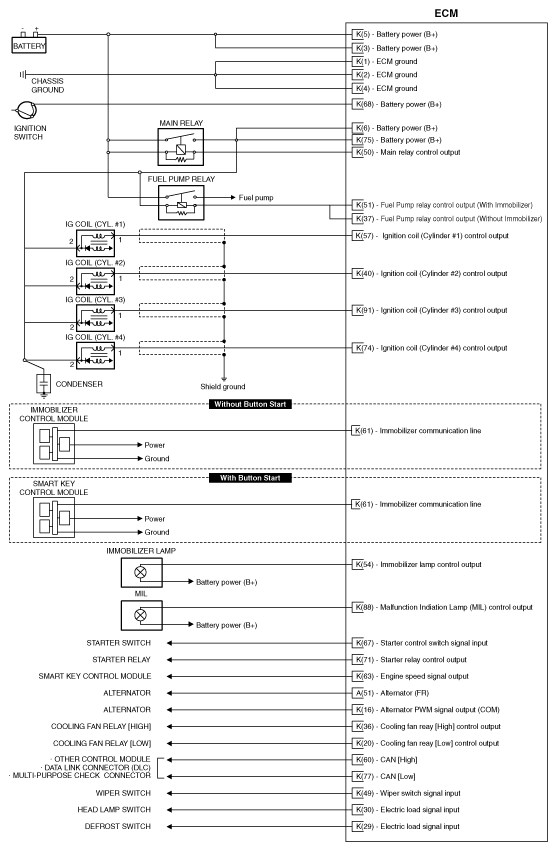

Fig 3: Engine Control Module System Circuit Diagram (A/T; 3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

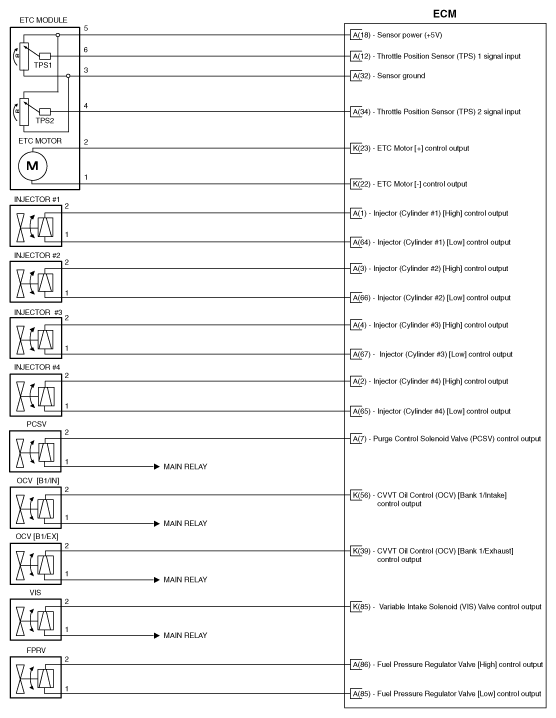

Fig 4: Engine Control Module System Circuit Diagram (A/T; 4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
