Passenger Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel.
(Refer to "FRONT DOOR ")
Disconnect the connector from the switch.

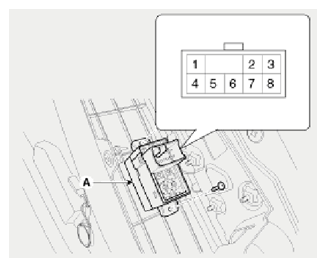

Fig 1: Identifying Passenger Power Window Switch Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

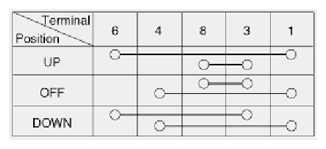

Fig 2: Passenger Power Window Switch Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA
Remove the power window switch after loosening 2 screws.
