Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel.
(Refer to "FRONT DOOR ")
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

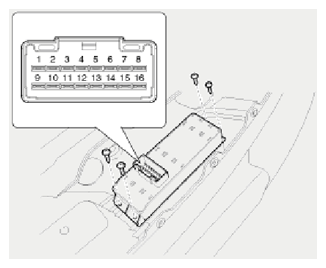

Fig 1: Identifying Power Window Main Switch Connector Terminals And Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

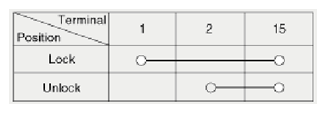

Fig 2: Power Window Main Switch Continuity Reference Chart
Courtesy of HYUNDAI MOTOR AMERICA

[Auto Down]

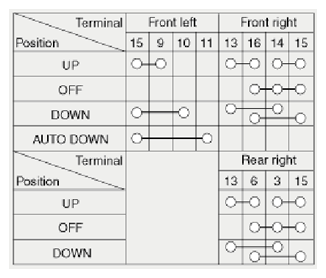

Fig 3: Power Window Main Switch Continuity Reference Chart (Auto Down)
Courtesy of HYUNDAI MOTOR AMERICA

[Safety Up/Down]

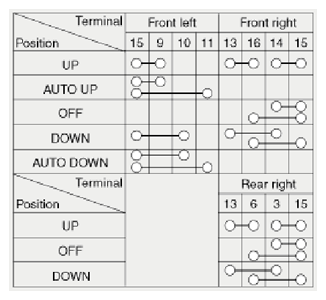

Fig 4: Power Window Main Switch Continuity Reference Chart (Safety Up/Down)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the grip holder cover after loosening 4 bolts.

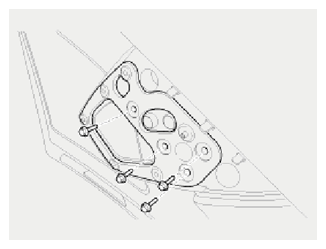

Fig 5: Identifying Grip Holder Cover Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the grip holder bracket (A).

Fig 6: Identifying Grip Holder Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Remove the power window switch module (A) after loosening 4 screws.

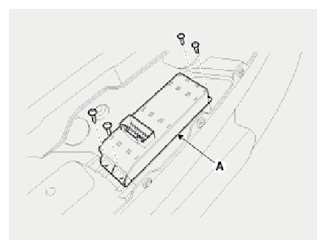

Fig 7: Identifying Power Window Switch Module And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
