Component Location

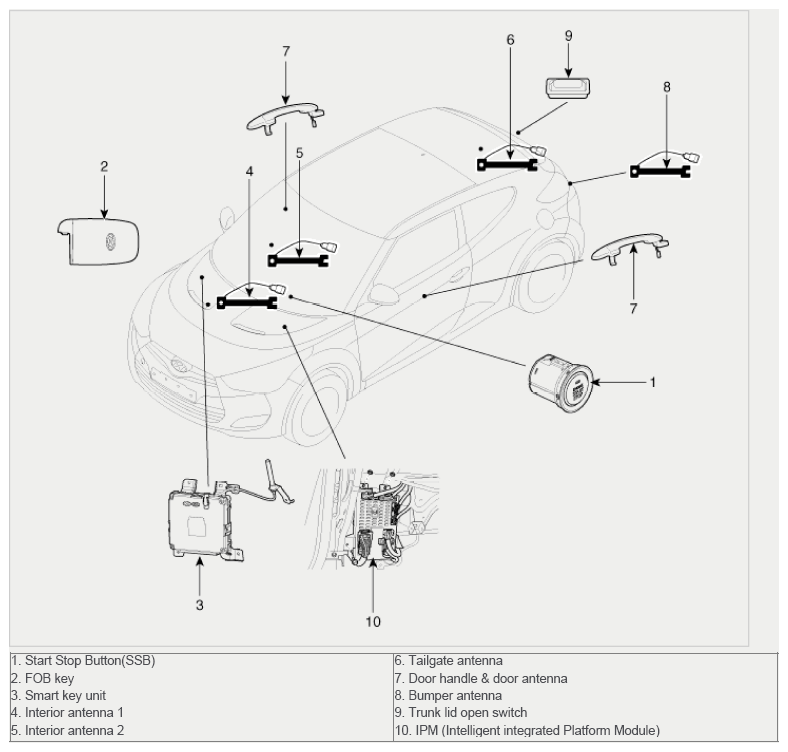

Fig 1: Button Engine Start System Related Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
