Components and Components Location: Component

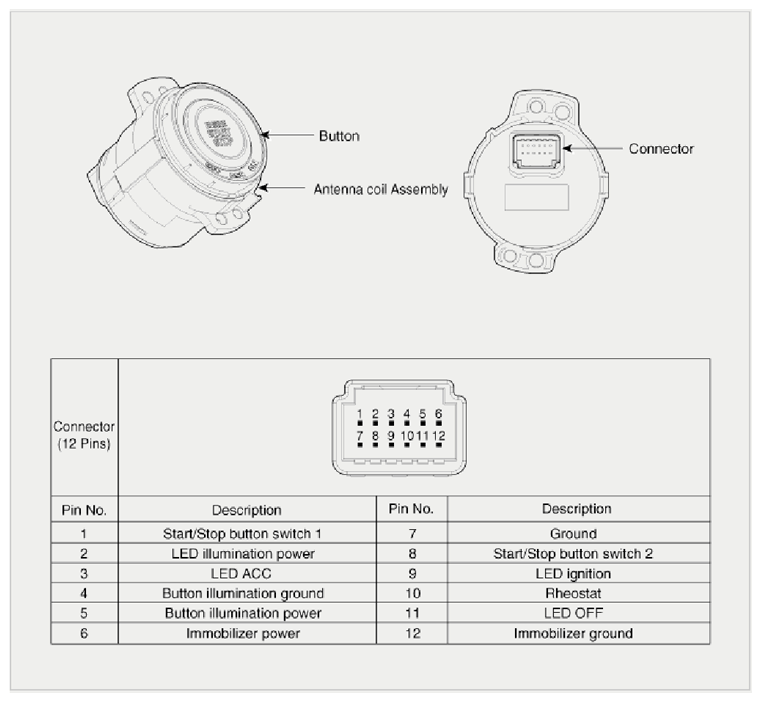

Fig 1: Antenna Coil Assembly, Button And Connector
G09135391Courtesy of HYUNDAI MOTOR AMERICA
