Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia panel assembly (A).

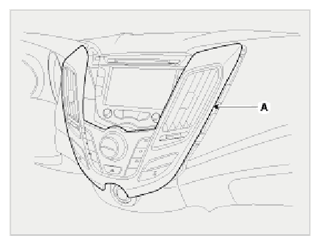

    Fig 1: Center Fascia Panel Assembly
    G09135392Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the connector after loosening 2 screws, and then remove the start/stop button (A).
    Fig 2: Start/Stop Button And Mounting Screws
    G09135393Courtesy of HYUNDAI MOTOR AMERICA
