Repair Procedures: Inspection

Disconnect the battery negative terminal.
Remove the fuse box cover.

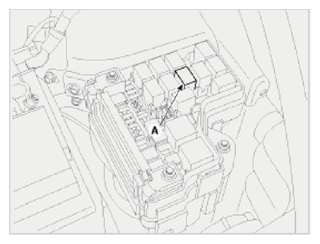

Remove the starter relay (A).

Fig 1: Starter Relay
Courtesy of HYUNDAI MOTOR AMERICA

Using an ohmmeter, check that there is continuity between each terminal.

Terminal	Continuity
30 - 87	NO
85 - 86	YES

Apply 12V to terminal 85 and ground to terminal 86.
Check for continuity between terminals 30 and 87.

Fig 2: Checking For Continuity Between Terminals 30 And 87
Courtesy of HYUNDAI MOTOR AMERICA
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
