Repair procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Disconnect the connector (A), and then remove the sensor (B).
NOTE: Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

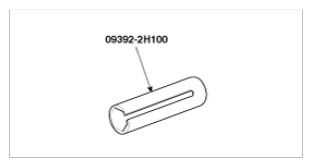

Fig 1: Identifying Special Tool
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Sensor 1]

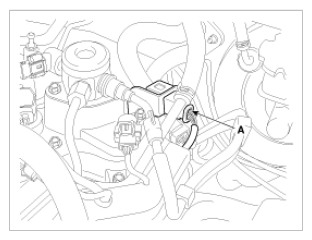

Fig 2: Sensor Connector (Bank 1 / Sensor 1)
Courtesy of HYUNDAI MOTOR AMERICA

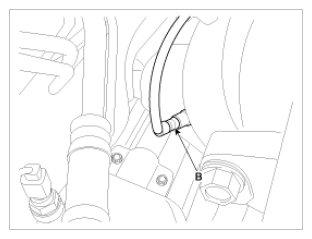

Fig 3: Sensor (Bank 1 / Sensor 1)
Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Sensor 2]

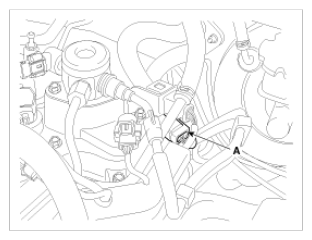

Fig 4: Sensor Connector (Bank 1 / Sensor 2)
Courtesy of HYUNDAI MOTOR AMERICA

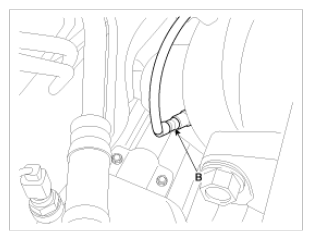

Fig 5: Sensor (Bank 1 / Sensor 2)
Courtesy of HYUNDAI MOTOR AMERICA
