Repair Procedures: Removal

Remove the floor console assembly.
(Refer to CONSOLE

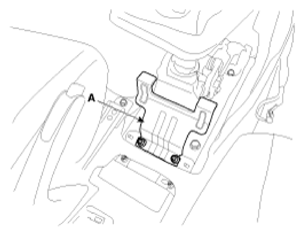

Remove the cover (A).

Fig 1: Floor Console Assembly Cover
Courtesy of HYUNDAI MOTOR AMERICA

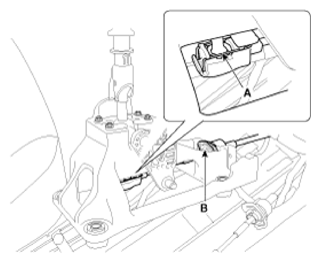

Remove the select cable (B) by removing the snap pin (A).

Fig 2: Select Cable & Snap Pin
Courtesy of HYUNDAI MOTOR AMERICA

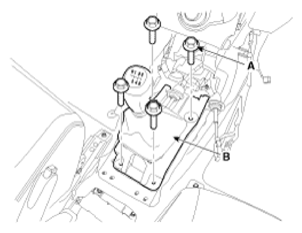

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 14.5 lb-ft)

Fig 3: Shift Lever Assembly & Bolts
Courtesy of HYUNDAI MOTOR AMERICA

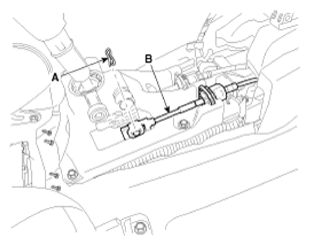

Remove the shift cable (B) by removing the clip (A).

Fig 4: Shift Cable & Clip
Courtesy of HYUNDAI MOTOR AMERICA

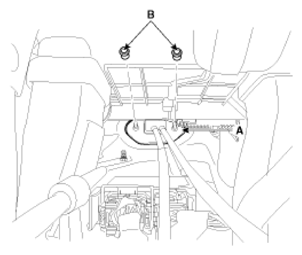

Remove the retainer (A) after loosen the nut (B).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.2 kgf.m, 87 ~ 10.8 lb-ft)

Fig 5: Retainer & Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the following items.
1. Air cleaner assembly and air duct.
  (Refer to "AIR CLEANER .
2. Battery and battery tray.
  (Refer to "BATTERY .
Remove the shift & select cable.

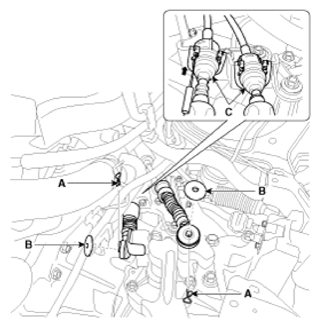

1. Remove the pin (A) and washer (B).
2. Make unlock clip (C) and then remove the shift & select cable and the clip (C) from the bracket.

  Fig 6: Shift & Select Cable Pin, Washer & Unlock Clip
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:
  - Do not reuse the clip (C).
Remove the shift cable at cabin room.
