Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the boost pressure sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.

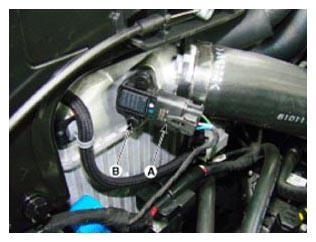

    Fig 1: Boost Pressure Sensor Connector With Installation Bolt
    G09151068Courtesy of HYUNDAI MOTOR AMERICA
