Wave Form

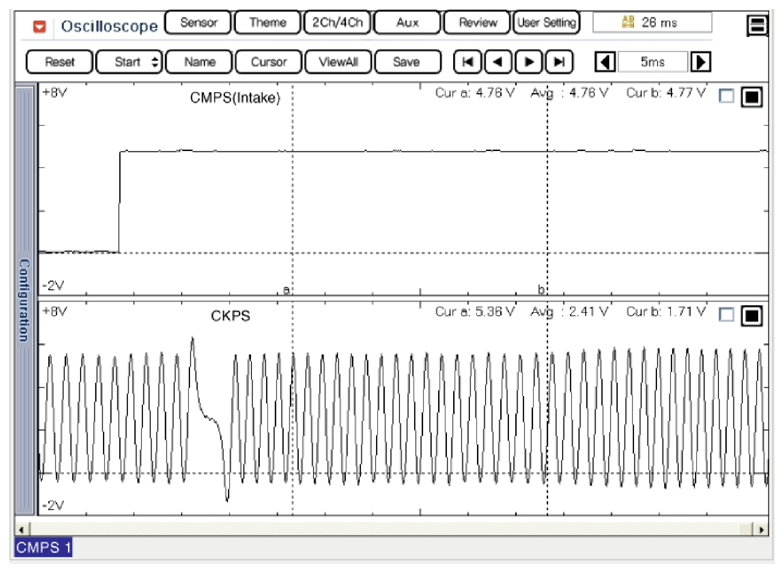

Fig 1: Crankshaft Position Sensor & CKPS Signal Waveform (Intake)
G09151081Courtesy of HYUNDAI MOTOR AMERICA

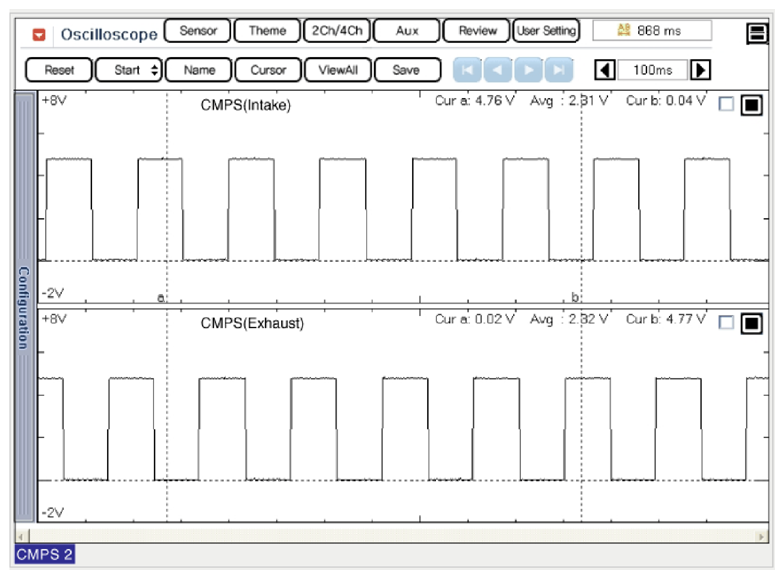

Fig 2: Crankshaft Position Sensor Signal Waveform (Intake & Exhaust)
G09151082Courtesy of HYUNDAI MOTOR AMERICA
