Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the fuel tank air filter and canister close valve.
  5. Remove the fuel tank air filter assembly after removing bolts (C).

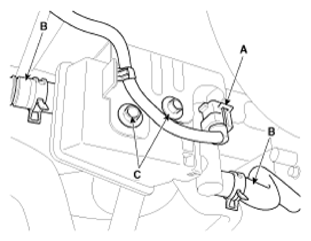

    6. Fig 1: Canister Close Valve Hose, Connector & Bolts
    G09151151Courtesy of HYUNDAI MOTOR AMERICA
  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow shown in the illustration.
    Fig 2: Releasing Lever
    G09151150Courtesy of HYUNDAI MOTOR AMERICA

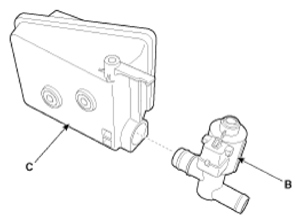

    Fig 3: Separating Canister Close Valve From Fuel Tank Air Filter
    G09151152Courtesy of HYUNDAI MOTOR AMERICA
