Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to "AIR CLEANER ")

  3. Disconnect the ETC module connector (A).

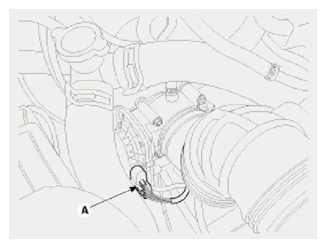

    Fig 1: Electronic Throttle Control Module Connector
    G09151049Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the installation bolts, and then remove the ETC module (A) from the engine.

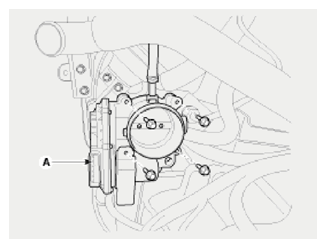

    Fig 2: Electronic Throttle Control Module
    G09151050Courtesy of HYUNDAI MOTOR AMERICA
